DP20 7KW-22KW

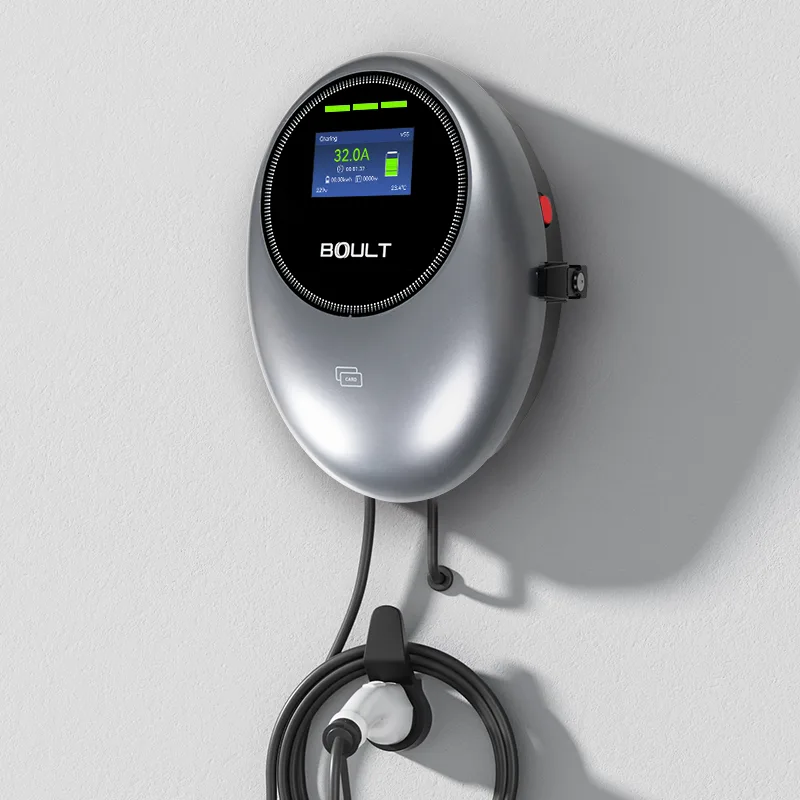

The DP20 EV Wallbox Charger is specially designed for Tesla and universal electric vehicles, supporting 7kW to 22kW adjustable power and multiple voltage inputs (220V/380V, 240V/400V, 250V). Equipped with a 4.3-inch LCD screen and LED indicators, it realizes dual-mode display, providing clear charging status and intuitive operation experience. With IP65 protection level, complete electrical safety protections and high-quality Acrylic+PC housing, it has a long service life (＞10,000 plug cycles) and adopts natural cooling design to ensure stable and safe charging. It is an ideal charging solution for home, commercial and public charging scenarios, with customizable communication modes to meet diverse needs.
WALLBOX EV CHARGER
DP20 7KW-22KW
6 Core Advantages
| ✅ High Power 7KW-22KW Adjustable | ✅ 220V/380V Wide Voltage Compatible |
| ✅ 4.3-inch LCD + LED Dual Display | ✅ IP65 Waterproof & Dustproof |
| ✅ Acrylic+PC Durable Housing | ✅ Wifi & Bluetooth (Optional) |
Product Description
The DP20 EV Wallbox Charger is specially designed for Tesla and universal electric vehicles, supporting 7kW to 22kW adjustable power and multiple voltage inputs (220V/380V, 240V/400V, 250V). Equipped with a 4.3-inch LCD screen and LED indicators, it realizes dual-mode display, providing clear charging status and intuitive operation experience. With IP65 protection level, complete electrical safety protections and high-quality Acrylic+PC housing, it has a long service life (＞10,000 plug cycles) and adopts natural cooling design to ensure stable and safe charging. It is an ideal charging solution for home, commercial and public charging scenarios, with customizable communication modes to meet diverse needs.
Product Parameters

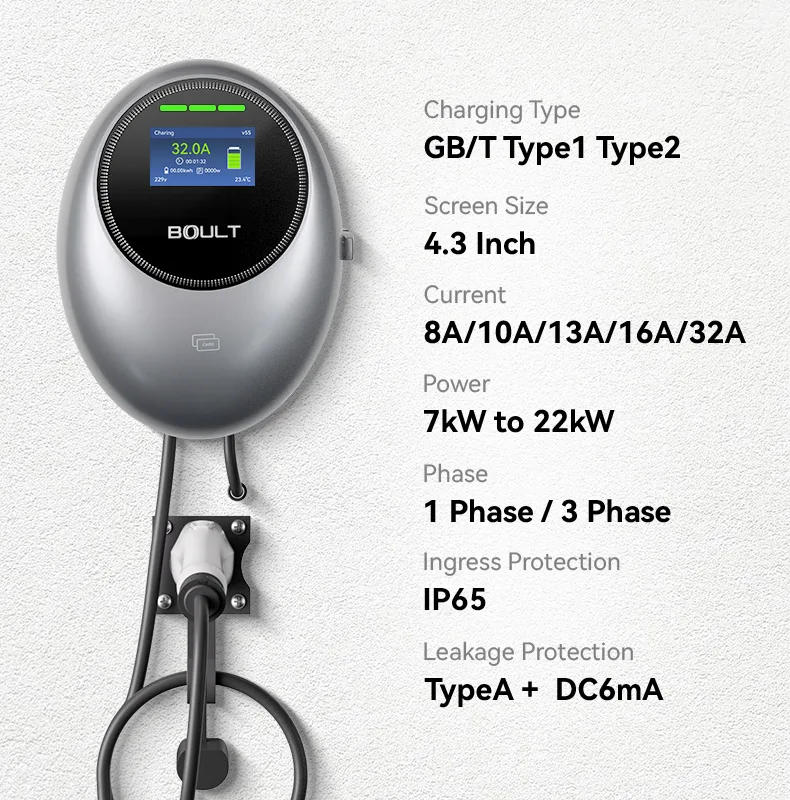

| Product Model | DP20 7KW-22KW |
| Product Size | 370mm*305mm*120mm |
| Package Size | 490mm*320mm*210mm |
| Net Weight | ＜5kg |
| Housing Material | Acrylic, PC |
| Mating Cycle Life | ＞10,000 times |
| Input/Output Voltage | 220V/380V, 240V/400V, 250V |
| Max Output Current | 16A/32A/30A/40A/48A |
| Rated Power | 7kW~22kW, 7kW~11.5kW, 7kW |
| Frequency | 50Hz/60Hz |
| RCD | Type A or B + DC6mA |
| User Interface | LED Indicator, 4.3 inch LCD Screen |
| Communication Method | Wifi, Bluetooth(Optional) |
| Working Temperature | -30℃ ~ +55℃ |
| Working Humidity | 5% ~ 95% |
| Working Altitude | ＜2000m |
| Cooling Method | Natural Cooling |

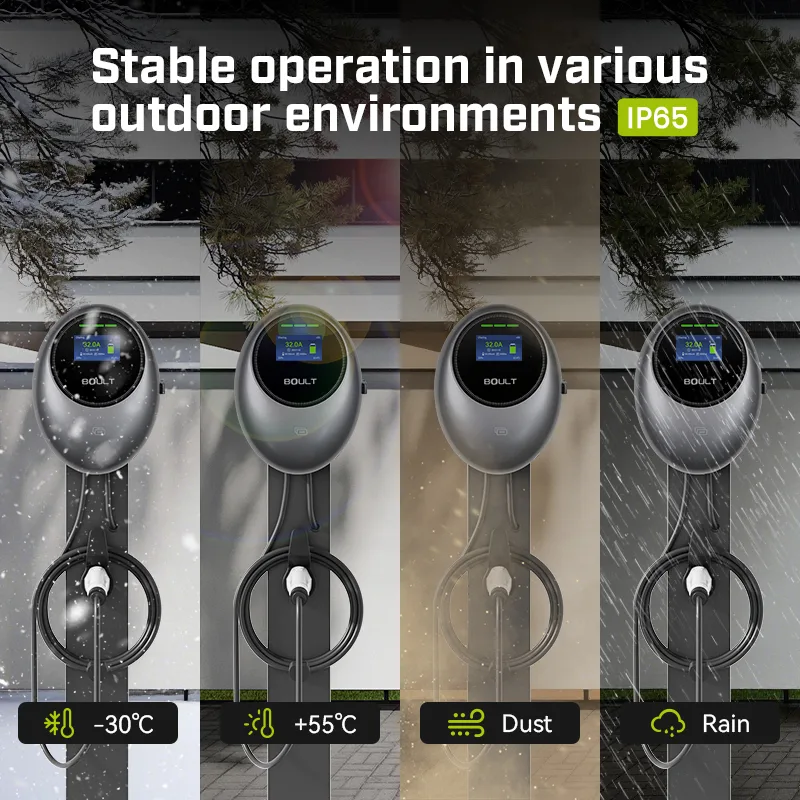

| Ingress Protection | IP65 |

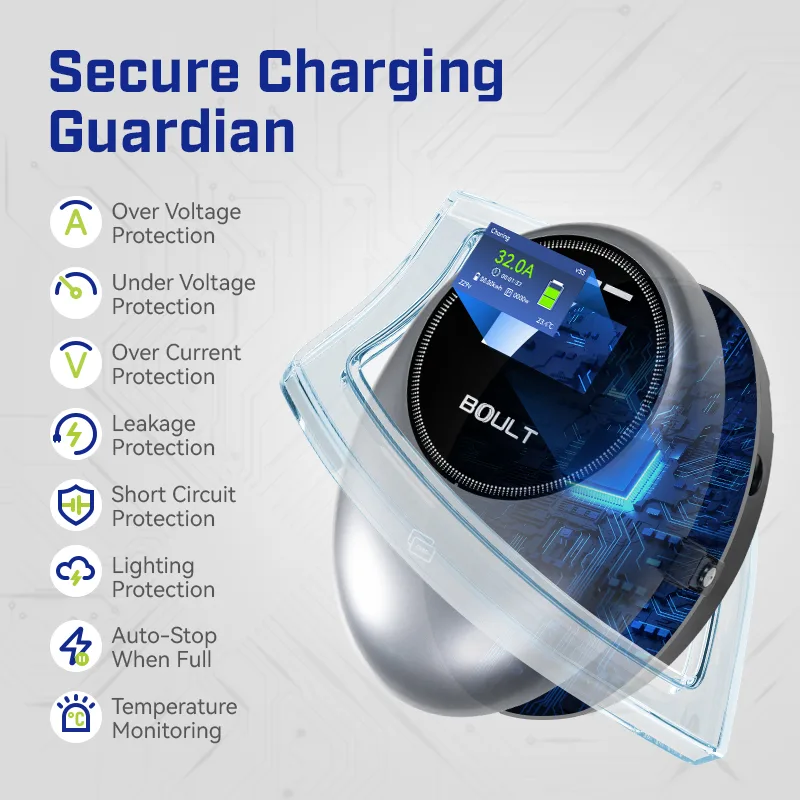

| Electrical Protection | Over/Under Voltage, Over Current, Lightning, Leakage, Short Circuit, Temperature Monitoring |
| Flame Retardant Rating | UL94V0, Fire-resistant Materials |
| Cable Material | TPU, Copper |
| Cable Length | 5m (Customize) |
