WP21 7KW-22KW
The WP21 EV Wallbox Charger is suitable for Tesla and all mainstream electric vehicles, supporting adjustable power from 7kW to 22kW and multiple voltage inputs including 220V/380V, 240V/400V and 250V. Equipped with LED indicators and complete electrical protection systems, it features IP65 ingress protection and can work stably in harsh environments. With durable housing, long service life and optional wireless communication, it is an ideal charging solution for residential, commercial and public applications.
WALLBOX EV CHARGER
WP21 7KW-22KW
6 Core Advantages
| ✅ High Power 7KW-22KW Adjustable | ✅ 220V/380V Wide Voltage Compatible |
| ✅ IP65 Waterproof & Dustproof | ✅ Long Life >10,000 Plug Cycles |
| ✅ Wifi & Bluetooth (Optional) | ✅ Natural Cooling & Stable Performance |
Product Description
The WP21 EV Wallbox Charger is suitable for Tesla and all mainstream electric vehicles, supporting adjustable power from 7kW to 22kW and multiple voltage inputs including 220V/380V, 240V/400V and 250V. Equipped with LED indicators and complete electrical protection systems, it features IP65 ingress protection and can work stably in harsh environments. With durable housing, long service life and optional wireless communication, it is an ideal charging solution for residential, commercial and public applications.
Product Parameters
| Product Model | WP21 7KW-22KW |
| Product Size | 235mm*220mm*125mm |
| Package Size | 410mm*300mm*220mm |
| Net Weight | ＜5kg |
| Housing Material | Acrylic, PC |
| Mating Cycle Life | ＞10,000 times |
| Input/Output Voltage | 220V/380V, 240V/400V, 250V |
| Max Output Current | 16A/32A/30A/40A/48A |
| Rated Power | 7kW~22kW, 7kW~11.5kW, 7kW |
| Frequency | 50Hz/60Hz |
| RCD | Type A or B + DC6mA |
| User Interface | LED Indicator |
| Communication Method | Wifi, Bluetooth(Optional) |
| Working Temperature | -30℃ ~ +55℃ |
| Working Humidity | 5% ~ 95% |
| Working Altitude | ＜2000m |
| Cooling Method | Natural Cooling |
| Ingress Protection | IP65 |

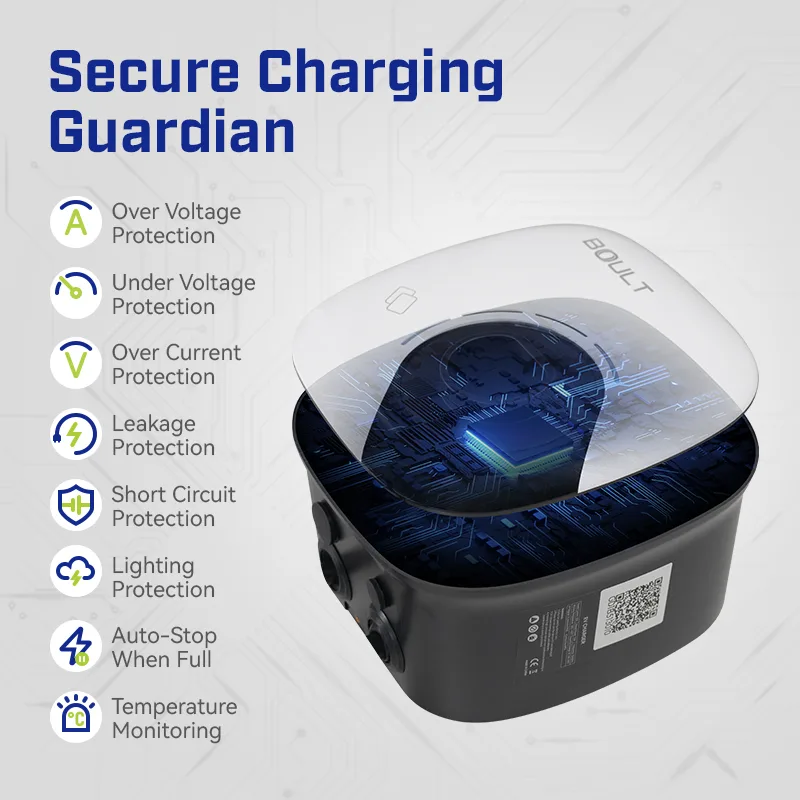

| Electrical Protection | Over/Under Voltage, Over Current, Lightning, Leakage, Short Circuit, Temperature Monitoring |
| Flame Retardant Rating | UL94V0, Fire-resistant Materials |
| Cable Material | TPU, Copper |
| Cable Length | 5m (Customize) |
