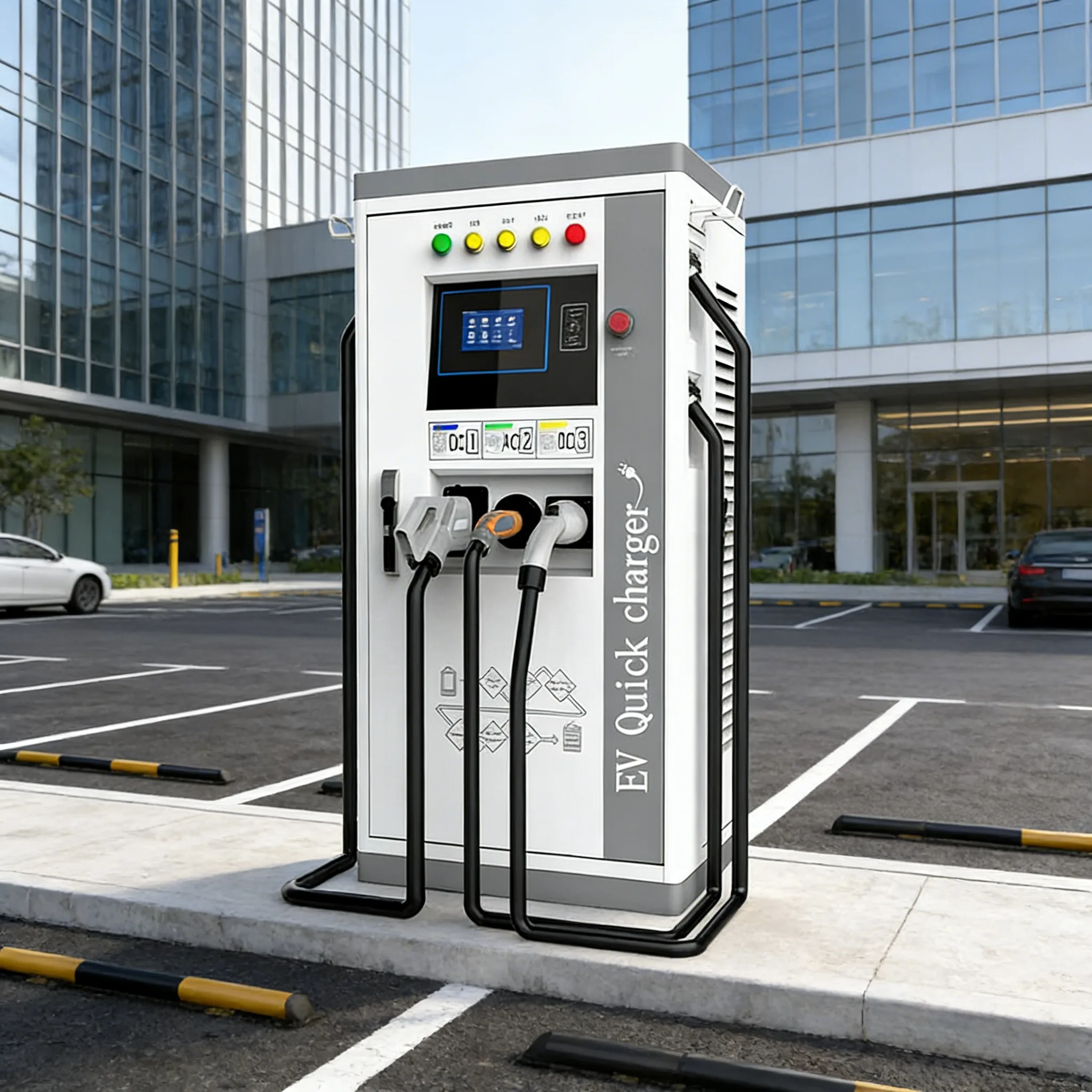

EV Charging Station – DC120KW

DC EV charging station is suitable for special urban charging stations (buses, taxis,official vehicles, sanitation vehicles, logistics vehicles, etc.); urban public charging stations(private cars, commuter cars, buses); urban residential communities, shopping plazas,Electric power business sites and other parking lots; inter-city expressway charging stationsand other occasions that require DC fast charging, which are especially suitable for rapiddeployment under limited site conditions.

EV Charging Station – DC 120KW

Multi-protection

Multiple protection functions make charging more stable

Design

Easy to install

Remote control

Program upgrade and fault diagnosis can be performed remotely

Protective block

Built-in active protection module, which can monitor the voltage of the vehicle battery, Temperature and other data

Access method

Support multiple port access methods such as APP and applet

Fast charging

High-efficiency fast charging

Product Description

The integrated DC charging pile is suitable for city-specific charging stations, urban public charging stations, urban residential quarters, shopping plazas, power business places and other parking lots, as well as intercity highway charging stations that require DC fast charging. It is especially suitable for rapid deployment under limited site conditions.

Product Parameter

ParameterSpecification
User Interface7-inch LCD color display touch screen
Installation MethodFloor-standing
Routing MethodBottom in and bottom out
Equipment Size700*500*1672 (mm)
Input VoltageAC380V ±20%
Input Frequency45~65Hz
Output Voltage200V-500V / 200V-750V / 200V-750V (constant power)
Single Gun Output Current Range0-240A / 0-160A / 0-250A
Cable Length4/5m
Measurement AccuracyLevel 0.5
HMI4.3 inch LCD color display touch screen
Charging ModeAutomatic charging/fixed power/fixed amount/fixed time
Payment MethodAPP payment/credit card payment/scan code payment
Communication InterfaceEthernet 2/3/4G (optional)
