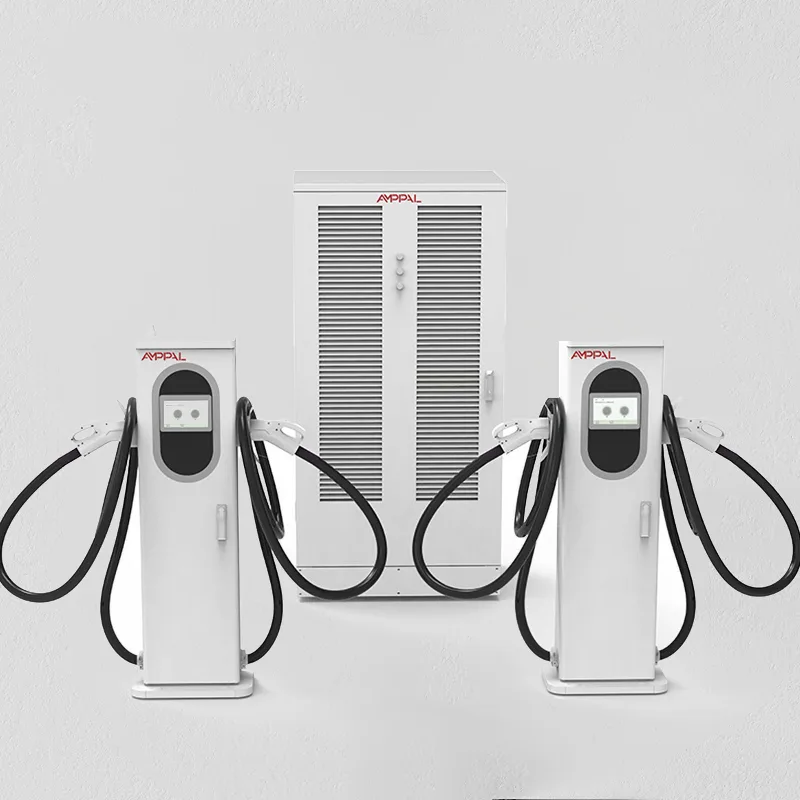

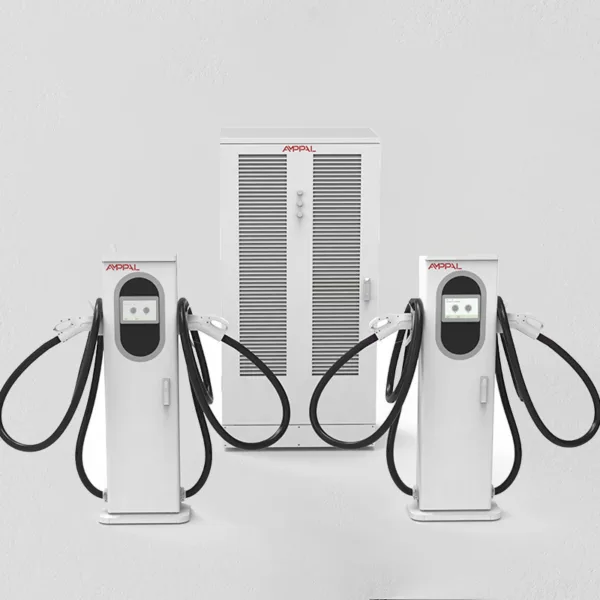

DC 240KW-720KW
The DC 240KW-720KW EV Charging Station is a professional ultra-high power DC fast charging equipment for large commercial charging scenarios. It supports multiple charging modes and flexible operation methods, equipped with 4G and standard Ethernet for stable network connection. Adopting galvanized sheet with metal baking paint shell and IP54 protection level, it provides complete safety protection functions. Complying with national standard GB/T 20234.2-2015, it features low temperature resistance, wide voltage output and stable performance, ideal for highway service areas and large public charging stations.
EV CHARGING STATION
DC 240KW-720KW
6 Core Advantages
| ✅ High Power DC 240KW-720KW | ✅ 4G + Standard Ethernet |
| ✅ Galvanized Sheet + Metal Paint | ✅ Wide Working Temperature -30~50℃ |
| ✅ Comprehensive Safety Protection | ✅ Multiple Intelligent Charging Methods |
Product Description
The DC 240KW-720KW EV Charging Station is a professional ultra-high power DC fast charging equipment for large commercial charging scenarios. It supports multiple charging modes and flexible operation methods, equipped with 4G and standard Ethernet for stable network connection. Adopting galvanized sheet with metal baking paint shell and IP54 protection level, it provides complete safety protection functions. Complying with national standard GB/T 20234.2-2015, it features low temperature resistance, wide voltage output and stable performance, ideal for highway service areas and large public charging stations.
Product Parameters
| Product Model | DC 240KW-720KW |
| Optional Charging Modes | Fixed Power, Auto Full Charge, Fixed Amount, Fixed Time |
| Network Configuration | 4G, Standard Ethernet |
| Protection Functions | Leakage, Over Voltage, Low Temperature, Over Temperature, Short Circuit, Lightning Protection, Overload, Grounding Protection |
| Working Temperature | -30℃ ~ +50℃ |
| Housing Material | Galvanized Sheet + Metal Baking Paint |
| Product Dimensions | 1000*800*2000mm |
| Power Type | DC (Direct Current) |
| Ingress Protection Rating | IP54 |
| Standard Type | National Standard (CN) |
| Rated Output Current | 100A |
| Rated Output Voltage | DC 750V |
| Standard No. | GB/T 20234.2-2015 |
| Rated Input Voltage | AC380V |
| Rated Output Voltage Range | 200-1000V |
| Appearance Color | White |
| Rated Input Frequency | 45Hz – 65Hz |
| Charging Methods | Swiping Card, APP, QR Code, Other Methods, VIN Code |
