DC 60KW-160KW

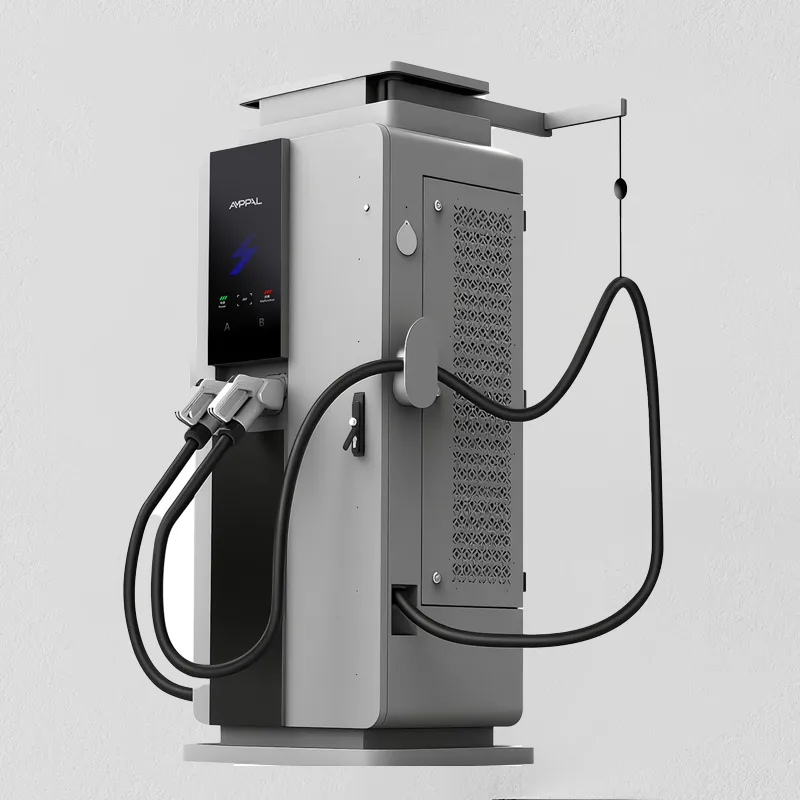

The DC 60KW-160KW EV Charging Station is a high-performance DC fast charging solution for commercial and public scenarios. It supports multiple charging modes and flexible operation methods, equipped with 4G and standard Ethernet for stable network connection. Adopting galvanized sheet shell and IP55 protection level, it provides complete safety protection functions. Complying with national standard GB/T 20234.2-2015, it features wide working temperature, wide voltage output and low standby power consumption, suitable for charging stations, parking lots and highway service areas.
EV CHARGING STATION
DC 60KW-160KW

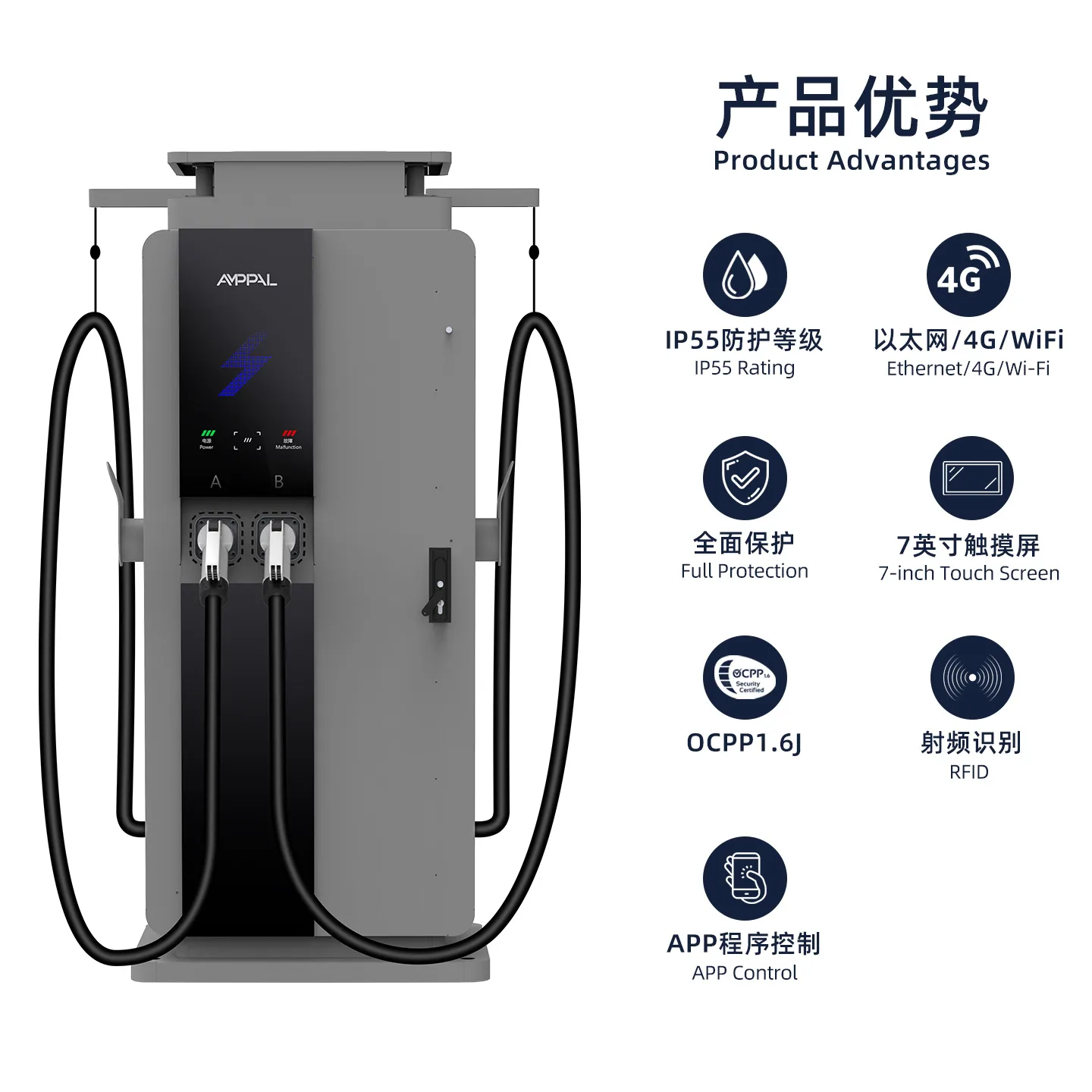

6 Core Advantages
| ✅ DC Fast Charging 60KW-160KW | ✅ 4G + Standard Ethernet |
| ✅ High Protection Grade IP55 | ✅ Full Safety Protection System |
| ✅ Wide Voltage 50-1000V | ✅ Ultra Low Standby Power 3W |
Product Description
The DC 60KW-160KW EV Charging Station is a high-performance DC fast charging solution for commercial and public scenarios. It supports multiple charging modes and flexible operation methods, equipped with 4G and standard Ethernet for stable network connection. Adopting galvanized sheet shell and IP55 protection level, it provides complete safety protection functions. Complying with national standard GB/T 20234.2-2015, it features wide working temperature, wide voltage output and low standby power consumption, suitable for charging stations, parking lots and highway service areas.
Product Parameters
| Product Model | DC 60KW-160KW |
| Optional Charging Modes | Fixed Power, Auto Full Charge, Fixed Amount, Fixed Time, Appointment Mode |
| Network Configuration | 4G, Standard Ethernet |
| Protection Functions | Emergency Stop, Leakage, Over Voltage, Low Temperature, Under Voltage, Over Temperature, and other Lightning Protection |
| Working Temperature | -20℃ ~ +55℃ |
| Housing Material | Galvanized Sheet |
| Product Dimensions | 1700*750*580 mm |
| Power Type | AC (Alternating Current) |
| Ingress Protection Rating | IP55 |
| Standard Type | National Standard (CN) |
| Rated Output Current | 0-250A |
| Rated Output Voltage | 50-1000V |
| Standard No. | GB/T 20234.2-2015 |
| Rated Input Voltage | AC380V±15%, Three Phase + N + PE |
| Rated Output Voltage Range | 200-1000V |
| Appearance Color | Gray |
| Rated Input Frequency | 45Hz – 65Hz |

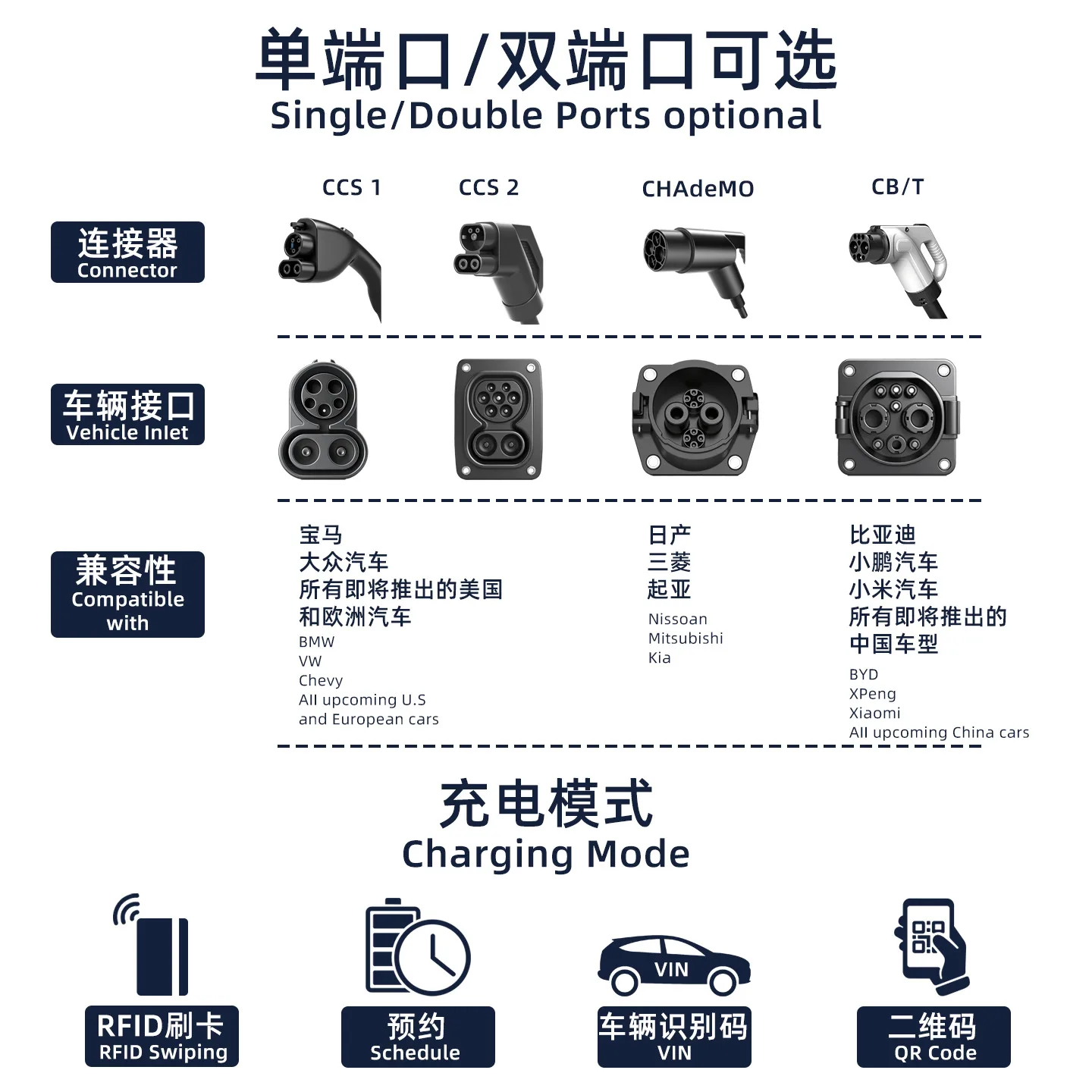

| Charging Methods | Swiping Card, Password, APP, QR Code, Bluetooth, VIN Code |
| Standby Power Consumption | 3W |
