DC 20KW-40KW

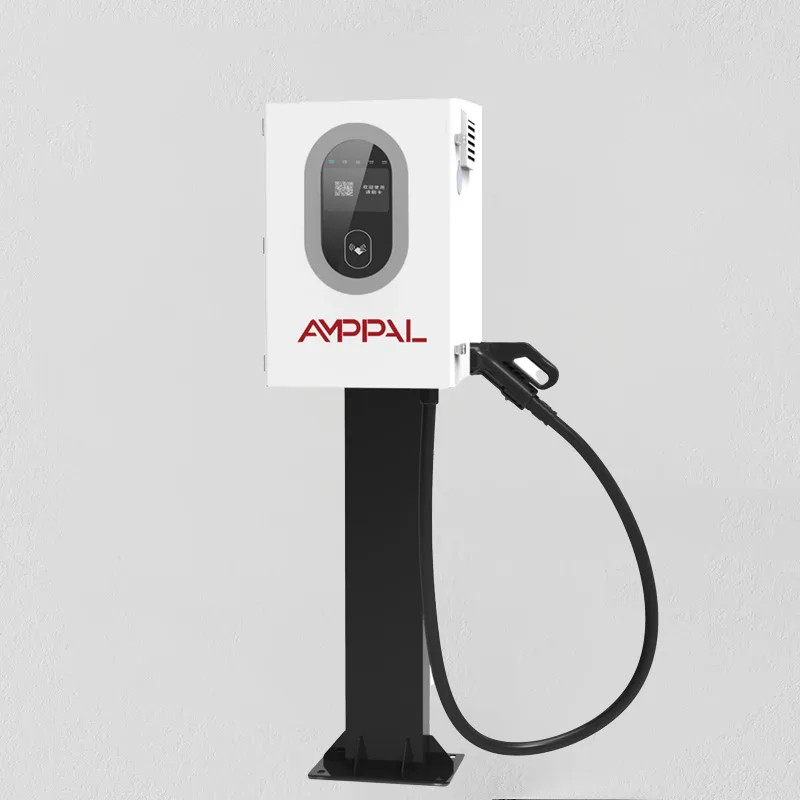

The DC 20KW-40KW EV Charging Station is a compact and efficient DC fast charging device, ideal for residential communities, small parking lots and private scenarios. It supports multiple charging modes and diversified operation methods, equipped with 4G and standard Ethernet for stable network connection. Adopting galvanized sheet shell and IP54 protection level, it provides full safety protection functions. Complying with national standard GB/T 20234.2-2015, it features compact size, ultra-low standby power consumption and reliable performance.
EV CHARGING STATION
DC 20KW-40KW
6 Core Advantages
| ✅ DC Fast Charging 20KW-40KW | ✅ 4G + Standard Ethernet |
| ✅ Complete Safety Protection | ✅ Multiple Charging Methods |
| ✅ Compact Size & Easy Installation | ✅ Ultra Low Standby Power 3W |
Product Description
The DC 20KW-40KW EV Charging Station is a compact and efficient DC fast charging device, ideal for residential communities, small parking lots and private scenarios. It supports multiple charging modes and diversified operation methods, equipped with 4G and standard Ethernet for stable network connection. Adopting galvanized sheet shell and IP54 protection level, it provides full safety protection functions. Complying with national standard GB/T 20234.2-2015, it features compact size, ultra-low standby power consumption and reliable performance.
Product Parameters
| Product Model | DC 20KW-40KW |
| Optional Charging Modes | Fixed Power, Auto Full Charge, Fixed Amount, Fixed Time, Appointment Mode |
| Network Configuration | 4G, Standard Ethernet |
| Protection Functions | Emergency Stop, Leakage, Over Voltage, Low Temperature, Under Voltage, Over Temperature, Lightning Protection |
| Working Temperature | -20℃ ~ +50℃ |
| Housing Material | Galvanized Sheet |
| Product Dimensions | 450*660*240mm |
| Power Type | AC (Alternating Current) |
| Ingress Protection Rating | IP54 |
| Standard Type | National Standard (CN) |
| Rated Output Current | 40A |
| Rated Output Voltage | 200-1000V |
| Standard No. | GB/T 20234.2-2015 |
| Rated Input Voltage | AC380V±15%, Three Phase + N + PE |
| Rated Output Voltage Range | 200-1000V |
| Appearance Color | White |
| Rated Input Frequency | 45Hz – 65Hz |
| Charging Methods | Swiping Card, Password, APP, QR Code, Bluetooth, VIN Code |
| Standby Power Consumption | 3W |
