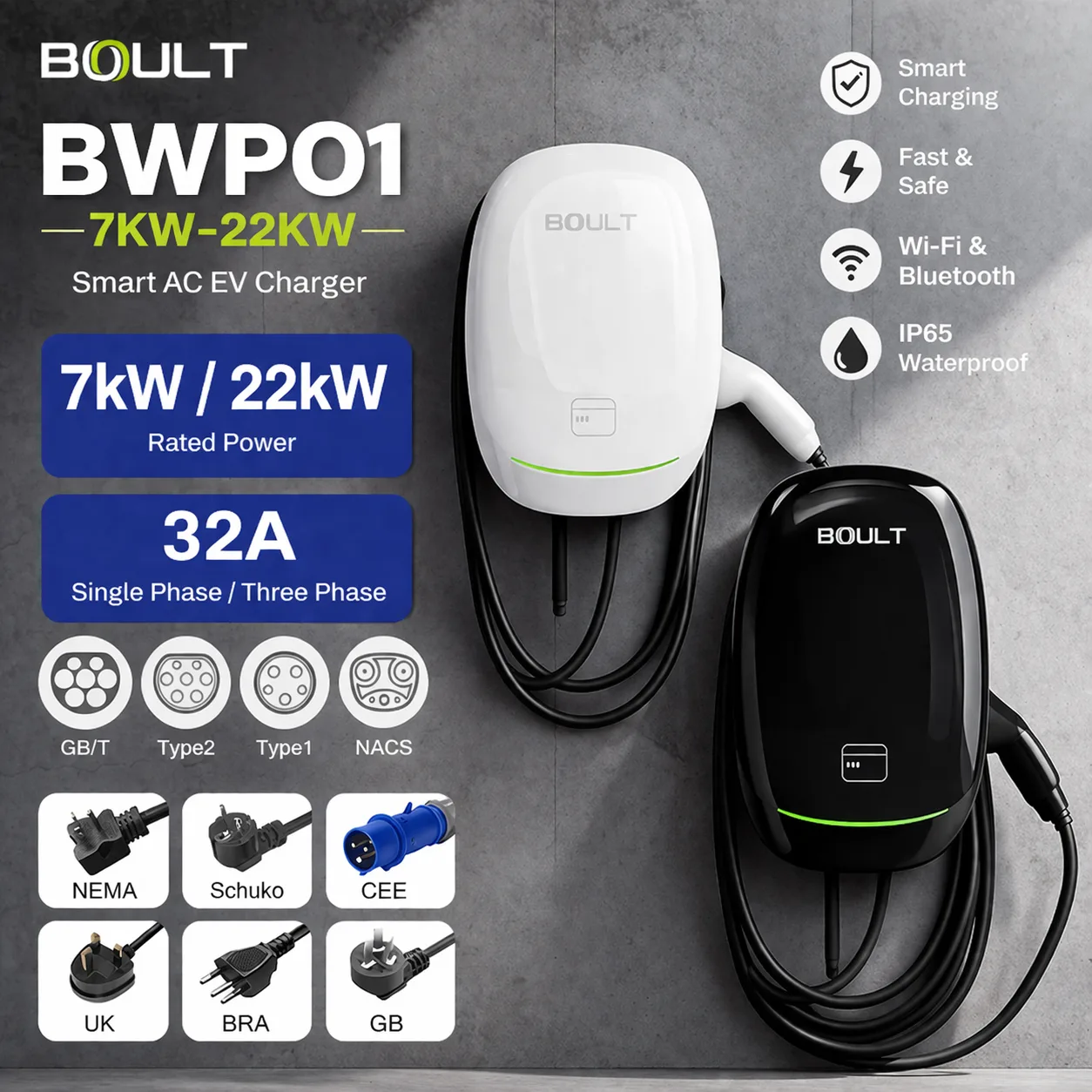

BWP01 7KW-22KW
The BWP01 EV Wallbox Charger is designed for Tesla and general electric vehicles, supporting 7kW to 22kW adjustable power and wide voltage input including 220V/380V, 240V/400V and 250V. Equipped with LED indicators and multiple safety protection functions, it reaches IP65 protection level and works reliably in harsh environments. With durable housing materials, long service life and customizable communication modes, it is an ideal charging solution for home, commercial and public charging scenarios.
WALLBOX EV CHARGER
BWP01 7KW-22KW
6 Core Advantages
| ✅ High Power 7KW-22KW Adjustable | ✅ 220V/380V Wide Voltage Compatible |
| ✅ IP65 Waterproof & Dustproof | ✅ Long Life >10,000 Plug Cycles |
| ✅ Wifi & Bluetooth (Optional) | ✅ Natural Cooling & Safe Stable |
Product Description
The BWP01 EV Wallbox Charger is designed for Tesla and general electric vehicles, supporting 7kW to 22kW adjustable power and wide voltage input including 220V/380V, 240V/400V and 250V. Equipped with LED indicators and multiple safety protection functions, it reaches IP65 protection level and works reliably in harsh environments. With durable housing materials, long service life and customizable communication modes, it is an ideal charging solution for home, commercial and public charging scenarios.
Product Parameters
| Product Model | BWP01 7KW-22KW |
| Product Size | 315mm*225mm*145mm |
| Package Size | 410mm*300mm*220mm |
| Net Weight | ＜5kg |
| Housing Material | Acrylic, PC |
| Mating Cycle Life | ＞10,000 times |
| Input/Output Voltage | 220V/380V, 240V/400V, 250V |
| Max Output Current | 16A/32A/30A/40A/48A |
| Rated Power | 7kW~22kW, 7kW~11.5kW, 7kW |
| Frequency | 50Hz/60Hz |
| RCD | Type A or B + DC6mA |
| User Interface | LED Indicator |
| Communication Method | Wifi, Bluetooth(Optional) |
| Working Temperature | -30℃ ~ +55℃ |
| Working Humidity | 5% ~ 95% |
| Working Altitude | ＜2000m |
| Cooling Method | Natural Cooling |
| Ingress Protection | IP65 |
| Electrical Protection | Over/Under Voltage, Over Current, Lightning, Leakage, Short Circuit, Temperature Monitoring |
| Flame Retardant Rating | UL94V0, Fire-resistant Materials |
| Cable Material | TPU, Copper |
| Cable Length | 5m (Customize) |
