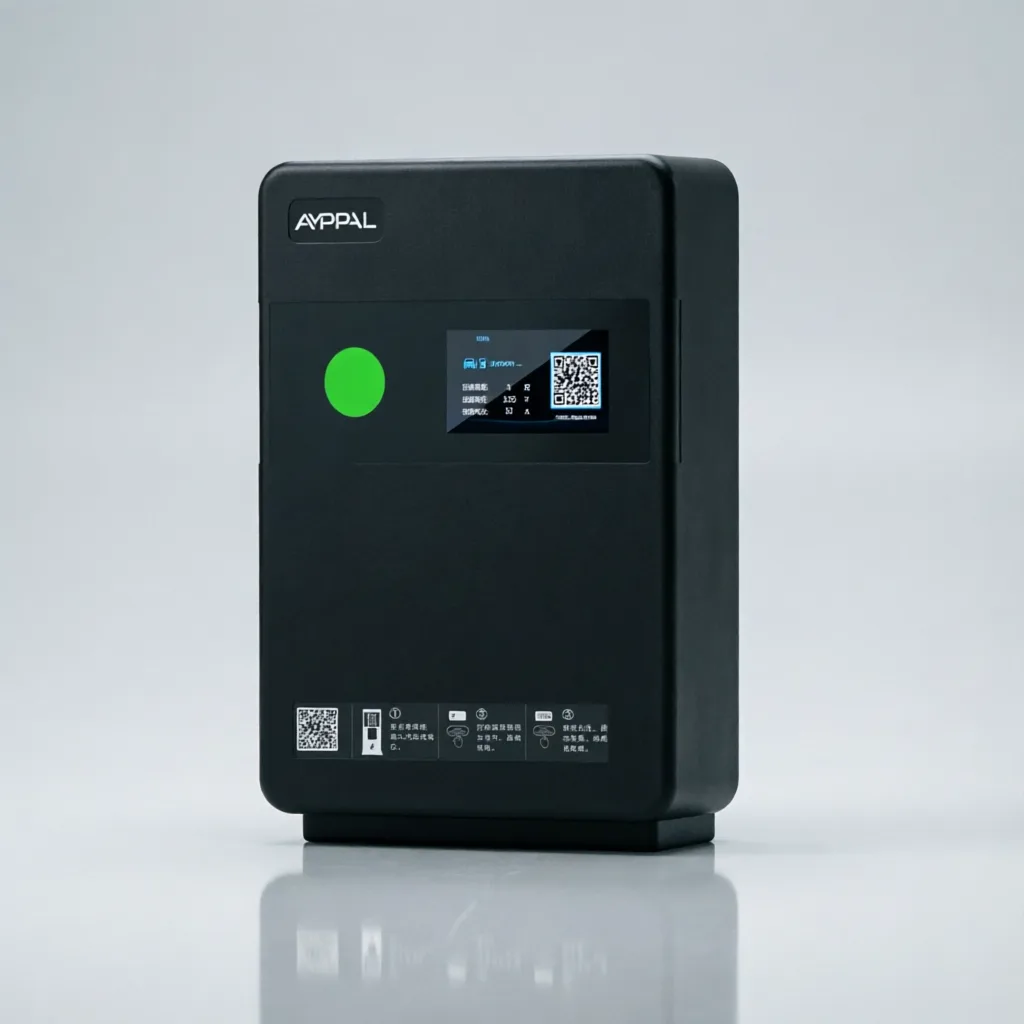

7kW Lingyi Series AC Electric Vehicle Charger

7kW Lingyi Series AC Electric Vehicle Charger

Product Overview

This AC charging station delivers AC power at 50/60Hz with a rated voltage of 220V±20%. Built for on-board electric vehicle charging, this solution fits the following application scenarios:

• Large, medium and small electric vehicle charging stations
• Public areas with dedicated EV parking spaces, such as urban residential communities, shopping plazas and power business premises
• Transportation hubs including expressway service areas, stations and wharves
• Real estate development and construction project acceptance requirements

Key Features

• 7kW High-Power Charging Output
  Runs on 220V single-phase power and works with most mainstream new energy vehicle models. It reaches a theoretical charging speed of up to 7km per hour, allowing a full charge in 4–6 hours during off-peak nighttime hours.
• Wide Voltage Adaptive Performance
  Operates stably across a 160V–260V voltage fluctuation range, delivering consistent charging performance even in unstable grid conditions such as rural areas and older residential communities.
• Intelligent Temperature Control System
  Built-in temperature sensors monitor charging status in real time and automatically regulate power output, ensuring safe, stable and long-term operation of the charging equipment.
• Full Electrical Protection Matrix
  Integrated with 30mA active leakage protection, over-current / over-voltage / under-voltage protection, lightning protection (8/20μs impulse current 20kA), and real-time charging connector temperature monitoring.

Technical Specifications

Certifications & Connector Options

• China Compulsory Certification (3C Certified)
• Available connector standards: US Standard, European Standard, Chinese GB Standard, Japanese Standard
