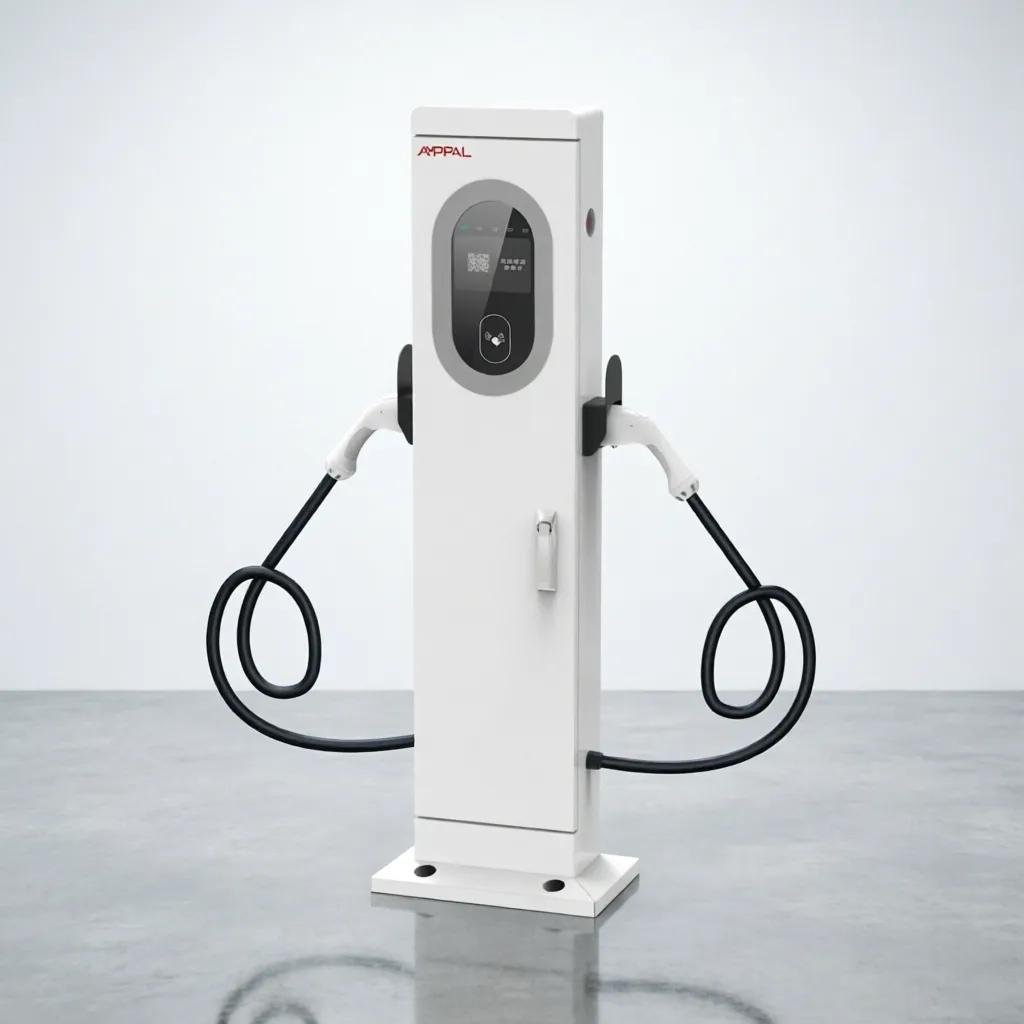

7/14/21/42kW Lingzhi Series AC Electric Vehicle Charger
This floor-standing AC charging station delivers AC power at 50/60Hz with flexible voltage ratings. Designed for both residential and commercial on-board EV charging, this solution applies to the following scenarios:
- Large, medium and small electric vehicle charging stations
- Public areas with dedicated EV parking spaces, such as urban residential communities, shopping plazas and power business premises
- Transportation hubs including expressway service areas, stations and wharves
- Real estate development and construction project acceptance requirements
7/14/21/42kW Lingzhi Series AC Electric Vehicle Charger
Product Overview
This floor-standing AC charging station delivers AC power at 50/60Hz with flexible voltage ratings. Designed for both residential and commercial on-board EV charging, this solution applies to the following scenarios:
- Large, medium and small electric vehicle charging stations
- Public areas with dedicated EV parking spaces, such as urban residential communities, shopping plazas and power business premises
- Transportation hubs including expressway service areas, stations and wharves
- Real estate development and construction project acceptance requirements
Key Features
- Multiple Power Rating Options
220V single-phase models fit mainstream household EVs: the 7kW version fully charges in 4–6 hours off-peak, while the 14kW dual-gun model doubles charging efficiency. 380V three-phase models are built for commercial use: the 21kW delivers fast charging, and the 42kW dual-gun configuration serves logistics and fleet scenarios, greatly reducing waiting time. - Wide Voltage Adaptive Technology
Single-phase models support 160V–260V input, maintaining stable charging in unstable grids like rural areas and old residential communities. Three-phase models accept 380V±15% input voltage range, compatible with various commercial power distribution environments. - Intelligent Temperature Control System
Built-in temperature sensors monitor charging status and device temperature in real time, automatically adjusting power output. The unit operates stably long-term across -25°C to 50°C, avoiding lifespan impact from extreme high or low temperatures. - Full Electrical Protection Matrix
Electrical safety: 30mA leakage protection, grounding anomaly protection, electric shock prevention. Circuit protection: over-voltage, under-voltage, overload and short-circuit protection. Stable operation: automatic power derating at over-temperature, local safe mode on communication failure. Emergency protection: physical emergency stop button for instant power cut.
Technical Specifications
| Parameter | 7kW Model | 14kW Model | 21kW Model | 42kW Model |
|---|---|---|---|---|
| Model Number | AF-AC-07-Y-A-Z-1/2/3/4-JA-P | AF-AC-14-Y-B-Z-1/2/3/4-JA-P | AF-AC-21-Y-A-Z-1/2/3/4-JA-P | AF-AC-42-Y-B-Z-1/2/3/4-JA-P |
| Rated Power | 7kW | 14kW | 21kW | 42kW |
| Input Voltage | AC 220V ± 20% | AC 220V ± 20% | AC 380V ± 15% | AC 380V ± 15% |
| Product Dimensions | 300 × 150 × 1400 mm | |||
| Output Current | 32A | 32A + 32A | 32A | 32A + 32A |
| Charging Modes | Auto full charge / Preset energy amount / Preset charging cost / Scheduled charging time | |||
| Activation Methods | APP payment / QR code charging / RFID card charging / Plug-and-charge | |||
| Network Connectivity | Ethernet / 4G | |||
| Noise Level | ≤ 40dB | |||
| Ingress Protection Rating | IP54 | |||
| Protection Functions | Over-voltage protection, under-voltage protection, overload protection, grounding protection, over-current protection, emergency stop protection, leakage protection, over-temperature protection | |||
Certifications & Connector Options
- China Compulsory Certification (3C Certified)
- Available connector standards: US Standard, European Standard, Chinese GB Standard, Japanese Standard
