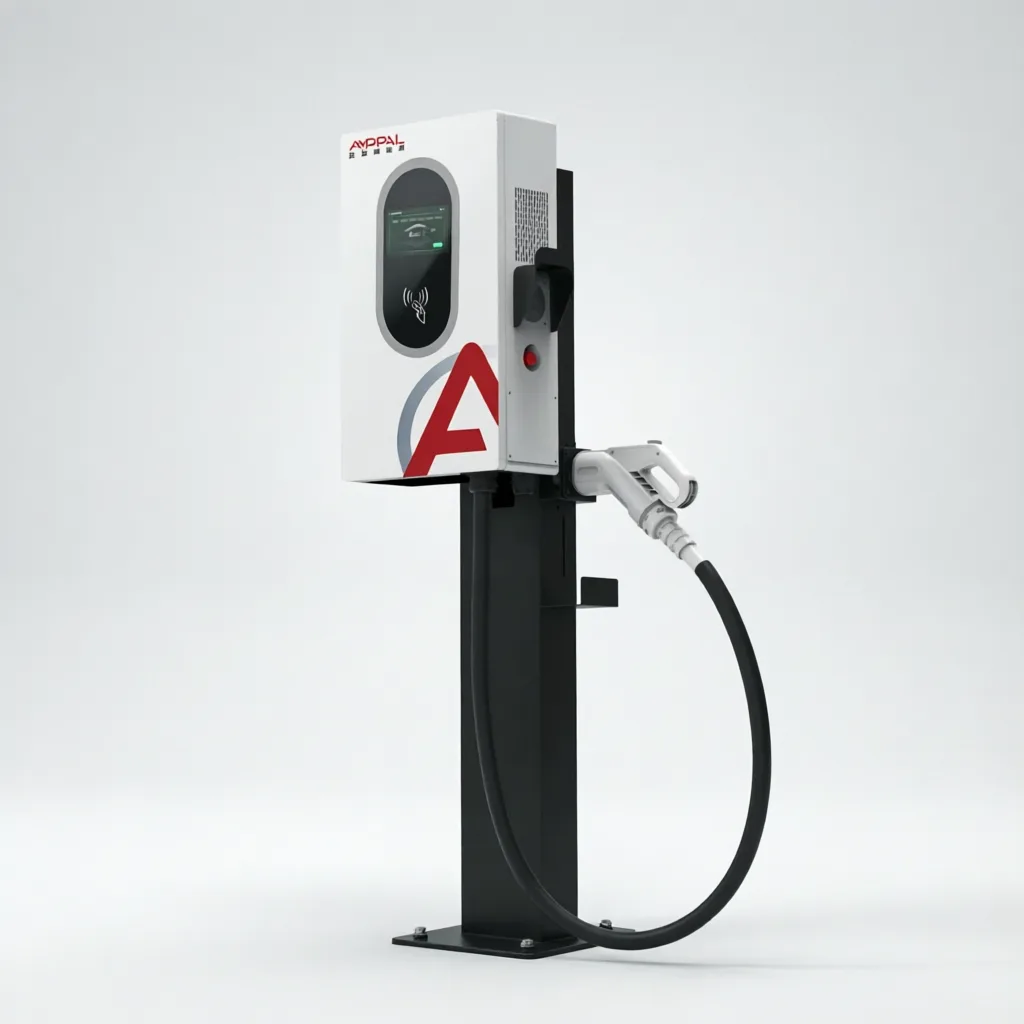

20kW Floor-standing / Wall-mounted DC Electric Vehicle Charger
This pole-mounted and wall-mount DC charging station is designed for urban public charging scenarios, including buses, taxis, official vehicles, sanitation vehicles and logistics fleets.
It is widely deployed in public charging stations for private cars, commuter vehicles and buses, shopping mall parking lots, power business premises, as well as intercity expressway charging stations where fast DC charging is required. Its compact form factor is especially suitable for rapid deployment in limited space environments.
20kW Floor-standing / Wall-mounted DC Electric Vehicle Charger
Product Overview
This pole-mounted and wall-mount DC charging station is designed for urban public charging scenarios, including buses, taxis, official vehicles, sanitation vehicles and logistics fleets.
It is widely deployed in public charging stations for private cars, commuter vehicles and buses, shopping mall parking lots, power business premises, as well as intercity expressway charging stations where fast DC charging is required. Its compact form factor is especially suitable for rapid deployment in limited space environments.
Key Features
- Intelligent Design
Digital current sharing technology enhances both current sharing accuracy and anti-interference performance. Module sleep and rotation technology optimizes system efficiency and reduces ineffective power consumption. Multi-mode charging with real-time monitoring enables smart interaction, meeting both operational management and individual user requirements. - Energy Saving & Low Noise
Three-phase PFC topology achieves PF > 0.99 and THDi ≤ 5%, delivering excellent grid compatibility. Full-bridge phase-shifted soft-switching technology breaks through high-frequency switching efficiency limits and minimizes standby power consumption. Intelligent noise reduction with dual electromagnetic and structural damping ensures quiet operation. - Comprehensive Safety Protection
Air-isolated and reverse-charging prevention design blocks grid surges and provides dual-direction protection for the device. Full-process monitoring delivers instant response to charging abnormalities. Hot-swappable module design ensures operator safety during maintenance operations. - High Efficiency & Flexible Deployment
Silicon Carbide (SiC) MOS modules feature high power density and redundancy design for outstanding reliability. Ultra-wide voltage output covers 99% of EV models, adapting to diverse application scenarios. The all-in-one structure supports fast deployment even in space-limited sites, optimizing overall operation costs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AF-DC-020-B/L-A-Z-2/4-H |
| Rated Power | 20kW |
| Input Voltage | AC 220V ± 20% |
| Product Dimensions | 1620 × 750 × 560 mm |
| Output Current | 0 – 67A |
| Charging Modes | Auto full charge / Preset energy amount / Preset charging cost / Scheduled charging time |
| Activation Methods | RFID card charging / Password charging |
| Network Connectivity | Ethernet / 4G |
| Noise Level | ≤ 65dB |
| Ingress Protection Rating | IP54 |
| Protection Functions | Charging gun temperature detection, over-voltage protection, under-voltage protection, overload protection, short-circuit protection, grounding protection, over-temperature protection, low-temperature protection, insulation monitoring, reverse polarity protection, lightning protection, emergency stop protection, leakage protection |
Certifications & Connector Options
- China Compulsory Certification (3C Certified)
- Available connector standards: US Standard, European Standard, Chinese GB Standard, Japanese Standard
