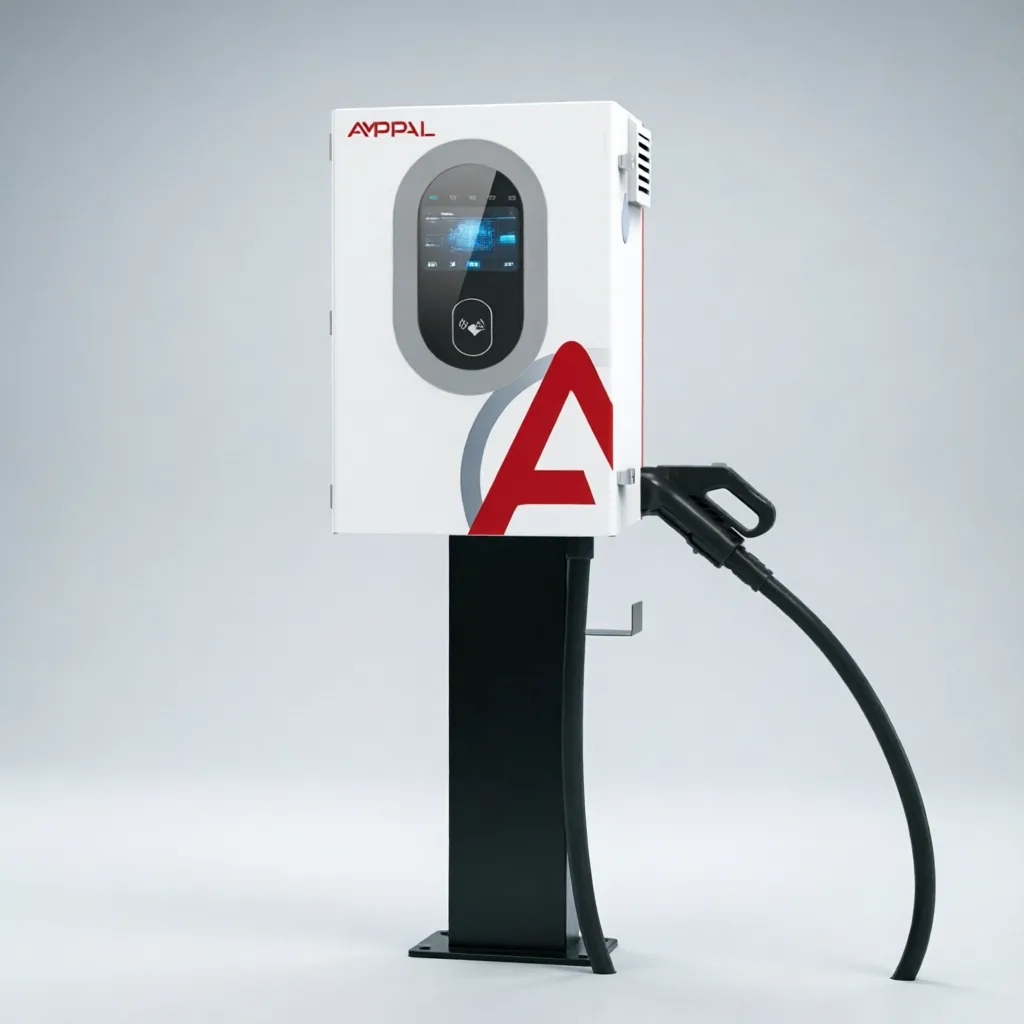

20/30/40kW Floor-standing / Wall-mounted DC Electric Vehicle Charger
This pole-mounted and wall-mount DC charging station is engineered for urban public charging scenarios, covering buses, taxis, official vehicles, sanitation trucks and logistics fleets.
It is ideal for public charging stations serving private cars, commuter vehicles and buses, shopping mall parking lots, power business premises, as well as intercity expressway charging sites requiring fast DC charging. Its compact all-in-one structure is perfectly suited for rapid deployment in space-constrained environments.
20/30/40kW Floor-standing / Wall-mounted DC Electric Vehicle Charger
Product Overview
This pole-mounted and wall-mount DC charging station is engineered for urban public charging scenarios, covering buses, taxis, official vehicles, sanitation trucks and logistics fleets.
It is ideal for public charging stations serving private cars, commuter vehicles and buses, shopping mall parking lots, power business premises, as well as intercity expressway charging sites requiring fast DC charging. Its compact all-in-one structure is perfectly suited for rapid deployment in space-constrained environments.
Key Features
- Intelligent Design
Digital current sharing technology improves both current sharing accuracy and anti-interference capability. Module sleep and rotation technology optimizes system efficiency and reduces idle power loss. Multi-mode charging with real-time monitoring enables smart interaction, fulfilling both fleet operation management and individual user demands. - Energy Saving & Low Noise Operation
Three-phase PFC topology delivers PF > 0.99 and THDi ≤ 5% for excellent grid friendliness. Full-bridge phase-shifted soft-switching technology boosts high-frequency module efficiency and cuts overall standby power consumption. Dual electromagnetic and structural damping noise reduction technology ensures quiet daily operation. - Full-Range Safety Protection
Air-isolation plus reverse-charging prevention design blocks grid surges and provides bidirectional protection for both charger and vehicle. Full-process monitoring system responds instantly to any charging abnormality. Hot-swappable module design guarantees personnel safety during on-site maintenance. - High Efficiency & Flexible Deployment
Silicon Carbide (SiC) MOS modules feature high power density and redundancy design for superior reliability. Ultra-wide output voltage range covers 99% of EV models on the market, adapting to diverse application scenarios. The integrated structure enables fast installation in space-limited locations, minimizing total operation cost.
Technical Specifications
| Parameter | 20kW Model | 30kW Model | 40kW Model |
|---|---|---|---|
| Model Number | AF-DC-020-B/L-A-Z-2/3/4-H | AF-DC-030-B/L-A-Z-2/3/4-H | AF-DC-040-B/L-A-Z-2/3/4-H |
| Rated Power | 20kW | 30kW | 40kW |
| Input Voltage | AC 220V ± 20% | ||
| Product Dimensions | 410 × 216 × 620 mm | 450 × 600 × 230 mm | |
| Output Current | 0 – 67A | 0 – 100A | 0 – 133A |
| Charging Modes | Auto full charge / Preset energy amount / Preset charging cost / Scheduled charging time | ||
| Activation Methods | QR code charging / RFID card charging / Password charging | ||
| Network Connectivity | Ethernet / 4G | ||
| Noise Level | ≤ 65dB | ||
| Ingress Protection Rating | IP54 | ||
| Protection Functions | Charging gun temperature detection, over-voltage protection, under-voltage protection, overload protection, short-circuit protection, grounding protection, over-temperature protection, low-temperature protection, insulation monitoring, reverse polarity protection, lightning protection, emergency stop protection, leakage protection | ||
Certifications & Connector Options
- China Compulsory Certification (3C Certified)
- Available connector standards: US Standard, European Standard, Chinese GB Standard, Japanese Standard
