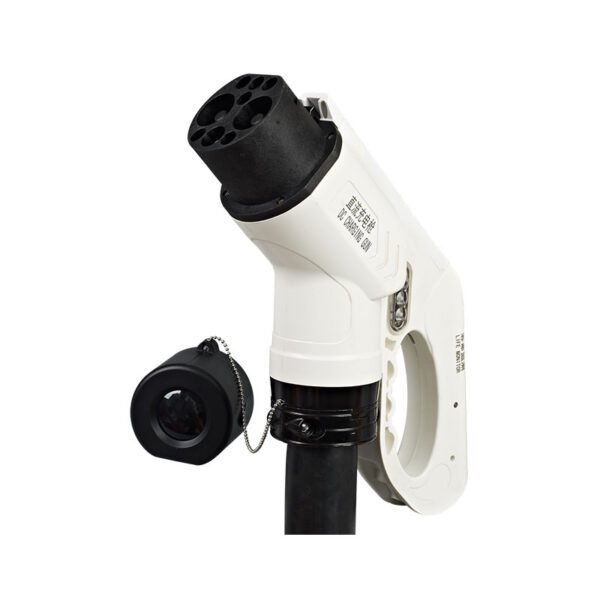

DC EV Charging Gun

A high-performance DC charging solution for fast and efficient EV charging.
Built with a robust, flame-retardant housing and high-conductivity copper components, it ensures stable power delivery and enhanced safety.

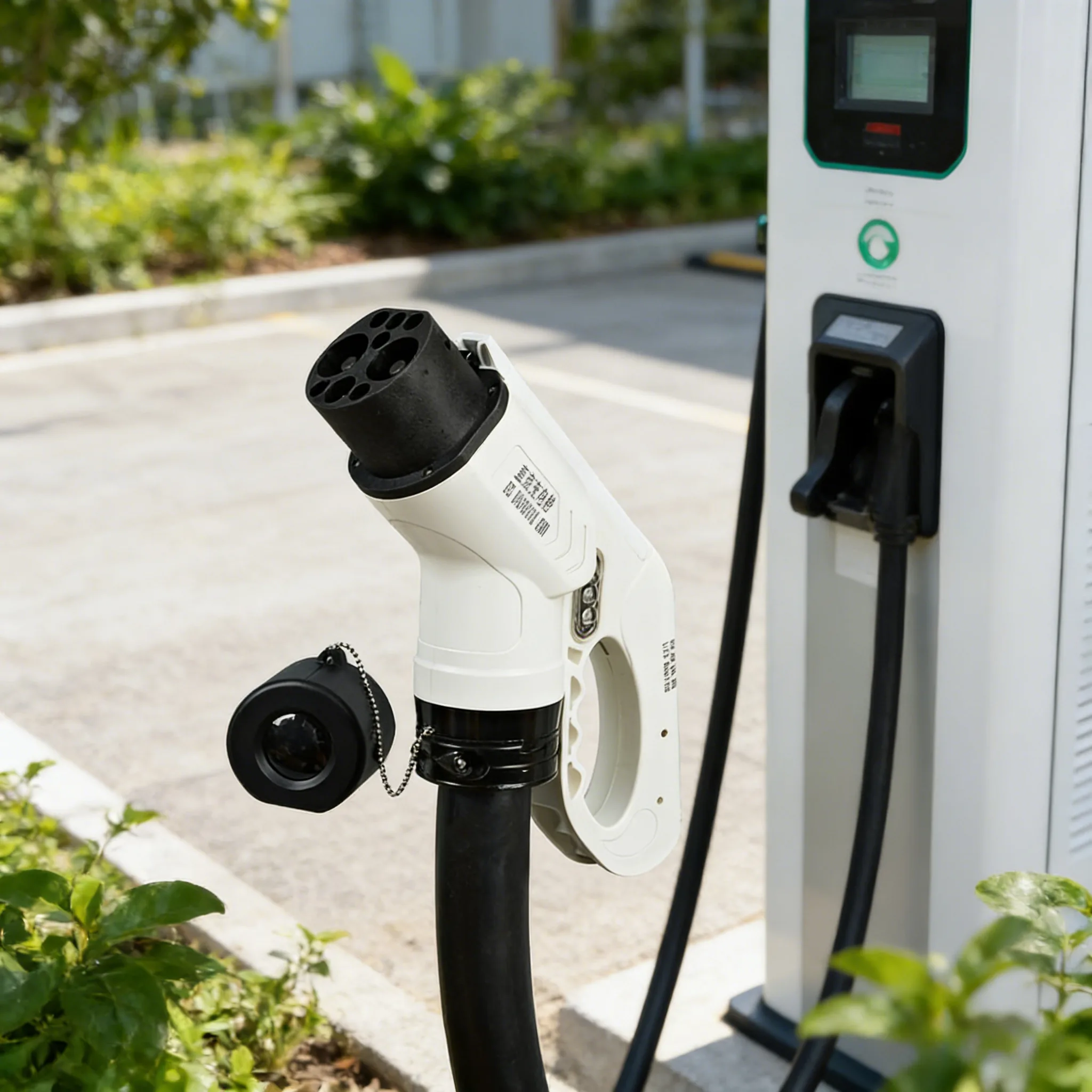

Ideal for fast-charging stations and high-demand commercial applications.

描述
用户评价 (0)

EV Charging Station – DC Charging Plug

Standard

Compatible with electric vehicles conforming to SAE J1772 standard or IEC 62196-2

Multi-protection

Multiple protection functions make charging more stable

Product Description

Shell material: thermoplastic with flame retardant grade UL94 V-0; Terminal: copper alloy with silver plating on the surface.

Product Parameter

Parameter	Specification
Rated Working Current	80A/125A/200A/250A
Operating Voltage	400/750 VDC
Contact Resistance	0.5 mΩ Max
Insulation Resistance	> 2000 MΩ
Terminal Temperature Rise	< 50 K
Withstand Voltage	3200 V
Mechanical Life	No-load Plugging and Unplugging > 10000 Times
Insertion and Extraction Force (Coupled)	70 N < F < 140 N
Working Temperature	-30℃~+50℃
Seals	Rubber or Silicone
Pin	Copper Alloy (Silver Plated Surface) + Top Thermoplastic
Shell Material	Thermoplastic
Flammability Rating	UL94 V-0
