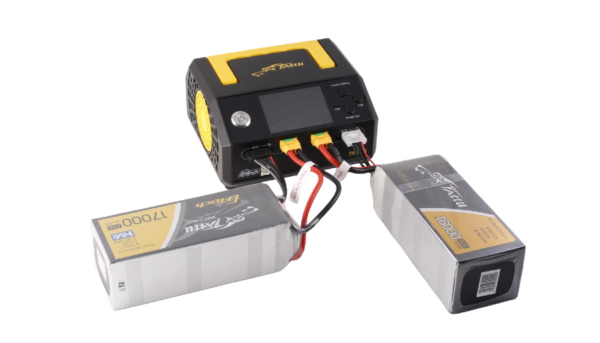

Tattu 6S LiPo Drone Battery Series
The Tattu 6S LiPo soft-pack battery series is engineered to meet the rigorous demands of modern drone applications, combining high performance, versatility, and reliability. With capacities ranging from 4500mAh to 40000mAh and discharge rates spanning 10C to 35C, these batteries cater to a broad spectrum of needs—from consumer drones to heavy-lift industrial UAVs. Available in 22.2V (standard), 22.8V (high-voltage) and 23.7v (ultra-high voltage) configurations, this series ensures compatibility with diverse drone systems while optimizing power delivery and efficiency.
Product Details
1. Standard Tattu 6S LiPo Drone Battery Solutions
| Model | Capacity | Nominal Voltage | Energy | Discharge Rate | Weight | Dimension(LxWxH) |
|---|---|---|---|---|---|---|
| TAA45006S25X6 | 4500mAh | 6S1P 22.2V | 99.9Wh | 25C | 650g | 138×42.5×52mm |
| TAA60006S35X6 | 6000mAh | 6S1P 22.2V | 133.2Wh | 35C | 885g | 148×45×59mm |
| TAA70006S25X9 | 7000mAh | 6S1P 22.2V | 155.4Wh | 25C | 870g | 138×42×65mm |
| TARBAS08K0625X | 8000mAh | 6S1P 22.2V | 177.6Wh | 25C | 1140g | 172×66×48mm |
| TAA90006S25E5 | 9000mAh | 6S1P 22.2V | 199.8Wh | 25C | 1173g | 208×73×37mm |
| TAA100006S30AX | 10000mAh | 6S1P 22.2V | 222Wh | 30C | 1360g | 177×66×58mm |
| TAA120006S30E | 12000mAh | 6S1P 22.2V | 266.4Wh | 30C | 1532g | 192×72×54mm |
| TAA160006S30X | 16000mAh | 6S1P 22.2V | 355.2Wh | 30C | 1974g | 190×76×65mm |

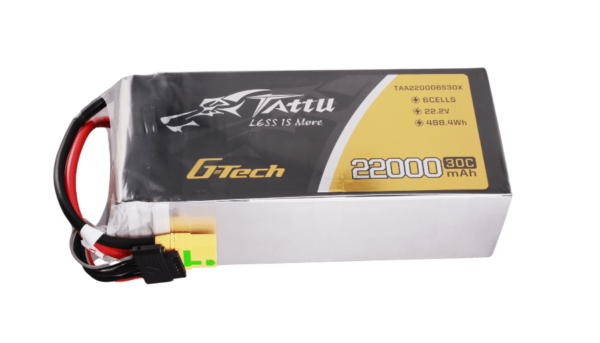

| TAA22000BS30X | 22000mAh | 6S1P 22.2V | 488.4Wh | 30C | 2460g | 206×91×61mm |
| TAA28K6S25ASX | 28000mAh | 6S1P 22.2V | 621.6Wh | 25C | 3413g | 205×121×67mm |
| TARBAS30K0625X | 30000mAh | 6S1P 22.2V | 666Wh | 25C | 3494g | 216×125×61mm |
*Connector Options: XT30, XT60, XT90, EC5, AS150U, QS5, QS8, QS9, QS10, AS250, AS150, etc.
2. High Voltage Tattu 6S LiPo Drone Battery Solutions
| Model | Capacity | Nominal Voltage | Energy | Discharge Rate | Weight | Dimension(LxWxH) |
|---|---|---|---|---|---|---|
| TAA11K6S25HVX | 11000mAh | 6S1P 22.8V | 250.8Wh | 25C | 1296g | 178×65×57mm |
| TAA17K6S15XT9 | 17000mAh | 6S1P 22.8V | 387.6Wh | 15C | 1857g | 192×77×60mm |

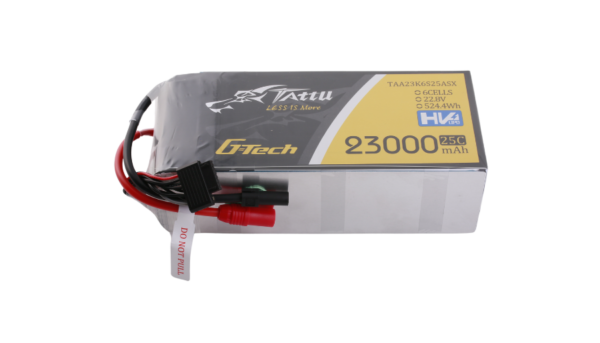

| TAA23K6S25ASX | 23000mAh | 6S1P 22.8V | 524.4Wh | 25C | 2474g | 208×91×62mm |
| TAA23K6S25XT9 | 23000mAh | 6S1P 22.8V | 524.4Wh | 25C | 2474g | 208×91×63mm |
| TAA25K6S10XT9 | 25000mAh | 6S1P 22.8V | 570Wh | 10C | 2542g | 208×90×65mm |
| TAA32K6S10XT9 | 32000mAh | 6S1P 22.8V | 729.6Wh | 10C | 3420g | 218×121×63mm |
| TAA40K6S10AS150 | 40000mAh | 6S1P 22.8V | 912Wh | 10C | 4130g | 263×122×64mm |
*Connector Options: XT30, XT60, XT90, EC5, AS150U, QS5, QS8, QS9, QS10, AS250, AS150, etc.
3. Ultra High Voltage Tattu 6S LiPo Drone Battery Solutions
| Battery Model | Capacity/Energy | Rated Voltage | Land-off Voltage | Dimension(T×W×L ±5mm) | Weight(±200g) | Energy Density | Constant Discharge Current (3C) | Peak Current(10C≤15S) |
|---|---|---|---|---|---|---|---|---|
| TARBUHV17K06S10X | 17Ah 402.9Wh | 6S 23.7V | 21.18V | 59.1×71.5×187 | 1586g | 254.04Wh/kg | 51A | 170A |
| TARBUHV22K06S10X | 22Ah 521.4Wh | 6S 23.7V | 21.18V | 59.7×73.5×218 | 2018g | 258.37Wh/kg | 66A | 220A |
| TARBUHV27K06S10X | 27Ah 639.9Wh | 6S 23.7V | 21.18V | 44.7×120.5×217 | 2444g | 261.82Wh/kg | 81A | 270A |
| TARBUHV32K06S10X | 32Ah 758.4Wh | 6S 23.7V | 21.18V | 51.9×120.5×217 | 2846g | 266.48Wh/kg | 96A | 320A |
| TARBUHV33K06S10X | 33Ah 782.1Wh | 6S 23.7V | 21.18V | 54.3×120.5×217 | 2972g | 263.16Wh/kg | 99A | 330A |
| TARBUHV41K06S10X | 41Ah 971.7Wh | 6S 23.7V | 21.18V | 71.1×104.5×234 | 3596g | 270.22Wh/kg | 123A | 410A |
| TARBUHV54K06S10X | 54Ah 1279.8Wh | 6S 23.7V | 21.18V | 79.5×121×237 | 4676g | 273.70Wh/kg | 162A | 540A |
| TARBUHV68K06S10X | 68Ah 1611.6Wh | 6S 23.7V | 21.18V | 65.7×151×287 | 5888g | 273.71Wh/kg | 204A | 680A |
*Connector Options: XT60, XT90, AS150U, QS5, QS8, QS9, QS10, AS250, AS150, etc.
Tattu 6S Drone Battery Features
●High Capacity for Extended Flights
●High Discharge Rates for Demanding Applications
●Dual Voltage Options
●Advanced Cell Technology
●Lightweight & Compact Design
