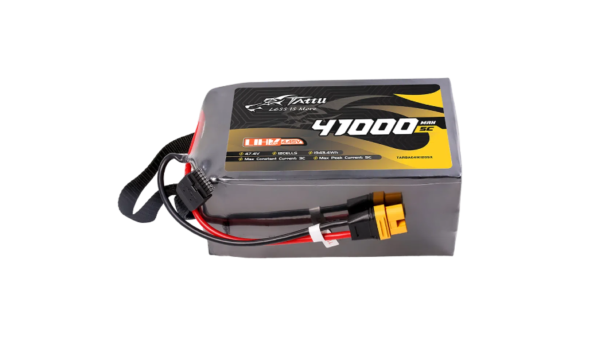

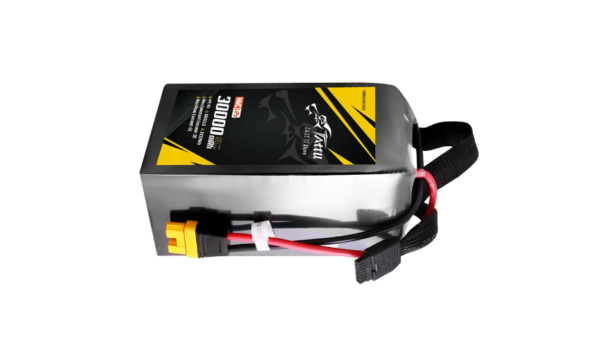

Tattu 12S LiPo Drone Battery Series
12S Soft Pack Drone Battery series is engineered for professional UAV platforms, offering a comprehensive power solution that scales with your mission requirements. With capacities ranging from 10 000 mAh to 84 000 mAh, selectable nominal voltages (44.4 V, 45.6 V and 47.4 V), and discharge rates spanning 10 C to 30 C, these LiPo packs deliver the energy density, flexibility and reliability demanded by today’s industrial drones.
Product Details
1. Standard Tattu 12S LiPo Drone Battery Solutions
| Battery Type | Capacity | Nominal Voltage | Energy | Discharge Rate | Weight (±100g) | Dimension (L×W×H ±5mm) |
|---|---|---|---|---|---|---|
| Standard LiPo 12S 10Ah | 10000mAh | 12S1P 44.4V | 444Wh | 30C | 2800g | 182×67×115mm |
| Standard LiPo 12S 16Ah | 16000mAh | 12S1P 44.4V | 710.4Wh | 30C | 4000g | 191×78×130mm |
| Standard LiPo 12S 22Ah | 22000mAh | 12S1P 44.4V | 976.8Wh | 30C | 4650g | 206×93×119mm |
*Connector Options: XT90, EC5, AS150U, QS5, QS8, QS9, QS10, AS250, AS150, etc.
2. High Voltage Tattu 12S LiHV Drone Battery Solutions
| Battery Type | Capacity | Nominal Voltage | Energy | Discharge Rate | Weight (±100g) | Dimension (L×W×H ±5mm) |
|---|---|---|---|---|---|---|
| LCO LiHV 12S 25Ah | 25000mAh | 12S1P 45.6V | 1140Wh | 10C | 5000g | 206×128×93mm |
| LCO LiHV 12S 40Ah | 40000mAh | 12S1P 45.6V | 1824Wh | 25C | 7950g | 256×123×119mm |
*Connector Options: XT90, EC5, AS150U, QS5, QS8, QS9, QS10, AS250, AS150, etc.
3. Ultra-High Voltage Tattu 12S Drone Battery Solutions
| Model | Capacity | Nominal Voltage | Energy | Discharge Rate (10C≤15S) | Weight (±200g) | Dimension (T×W×L ±5mm) |
|---|---|---|---|---|---|---|
| TARBUHV17K12S10X | 17000mAh | 12S1P 47.4V | 805.8Wh | 10C | 3102.13g | 118.7×71.5×192 |
| TARBUHV22K12S10X | 22000mAh | 12S1P 47.4V | 1042.8Wh | 10C | 4021.28g | 119.9×73.5×223 |
| TARBUHV27K12S10X | 27000mAh | 12S1P 47.4V | 1279.8Wh | 10C | 4927.66g | 89.9×120.5×222 |
| TARBUHV32K12S10X | 32000mAh | 12S1P 47.4V | 1516.8Wh | 10C | 5782.98g | 104.3×120.5×222 |
| TARBUHV33K12S10X | 33000mAh | 12S1P 47.4V | 1564.2Wh | 10C | 6051.06g | 109.1×120.5×222 |
| TARBUHV41K12S10X | 41000mAh | 12S1P 47.4V | 1943.4Wh | 10C | 7378.72g | 142.7×104.5×239 |
| TARBUHV54K12S10X | 54000mAh | 12S1P 47.4V | 2559.6Wh | 10C | 9676.60g | 159.5×121×242 |
| TARBUHV68K12S10X | 68000mAh | 12S1P 47.4V | 3223.2Wh | 10C | 12255.32g | 131.9×151×292 |
*Connector Options: XT90, EC5, AS150U, QS5, QS8, QS9, QS10, AS250, AS150, etc.
4. 12S Semi-solid State Battery UAV Power Solutions
| Battery Model | Capacity/Energy | Rated Voltage | Land-off Voltage | Dimension(T×W×L ±5mm) | Weight(±200g) | Energy Density | Constant Discharge Current (3C) | Peak Current(10C≤15S) |
|---|---|---|---|---|---|---|---|---|
| TARBG3017K12S10X | 17Ah 754.8Wh | 12S 44.4V | 36.6V | 101.9×71.5×196.5 | 2655g | 284.26Wh/kg | 51A | 170A |
| TARBG3022K12S10X | 22Ah 976.8Wh | 12S 44.4V | 36.6V | 118.7×76.5×197 | 3421g | 285.51Wh/kg | 66A | 220A |
| TARBG3025K12S10X | 25AH 1110Wh | 12S 44.4V | 36.6V | 104.3×91.5×212 | 3906g | 284.15Wh/kg | 75A | 250A |
| TARBG3030K12S10X | 30Ah 1332Wh | 12S 44.4V | 36.6V | 124.7×91.5×212 | 4672g | 285.08Wh/kg | 90A | 300A |
| Tattu 84Ah 12S | 84Ah 3729.6Wh | 12S 44.4V | 36.6V | 149.9×151.5×292 | 13277g | 280.92Wh/kg | 252A | 840A |
| TARBG3325K12S10X | 25Ah 1110Wh | 12S 44.4V | 35.4V | 124.7×76.5×197 | 3574g | 310.54Wh/kg | 75A | 250A |
| TARBG3333K12S10X | 33Ah 1465.2Wh | 12S 44.4V | 35.4V | 124.7×91.5×212 | 4672g | 313.59Wh/kg | 99A | 330A |
| TARBG3376K12S10X | 76Ah 3374.4Wh | 12S 44.4V | 35.4V | 123.5×151.5×292 | 10877g | 310.24Wh/kg | 228A | 760A |
| TARBG3526312S10X | 26.3Ah 1167.72Wh | 12S 44.4V | 34.56V | 129.7×76.5×197 | 3574g | 326.68Wh/kg | 78.9A | 263A |
| TARBG3533K12S10X | 33Ah 1465.2Wh | 12S 44.4V | 34.56V | 127.1×89.5×212 | 4443g | 329.81Wh/kg | 99A | 330A |
| TARBG3580412S10X | 80.4Ah 3569.76Wh | 12S 44.4V | 34.56V | 128.5×151.5×292 | 10877g | 328.21Wh/kg | 241.2A | 804A |
*Connector Options: XT90, EC5, AS150U, QS5, QS8, QS9, QS10, AS250, AS150, etc.
Tattu 12S LiPo Drone Battery Features
●Lightweight, High-energy Design
●Support 1C Charging Rate
●Various Capacity & Voltage Options
●Advanced Cell Technology
●Ideal for UAV long-endurance missions
●Customizable designs available
