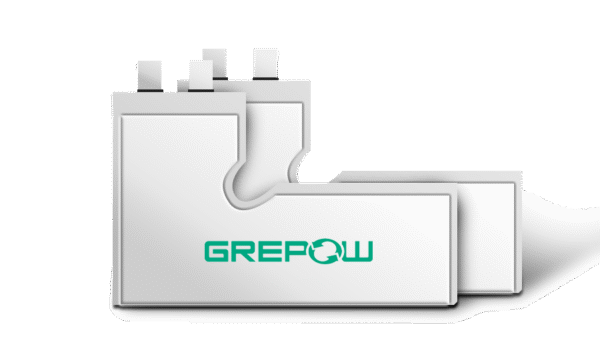

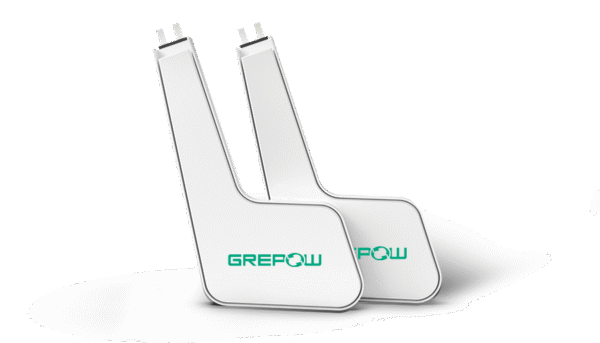

Pouch L Shaped Lipo Battery

L-shaped battery is a kind of shaped battery designed in the shape of the letter “L”. Grepow L-shaped lithium polymer battery series is perfectly suited for smart device designs, offering more options for your device in terms of shape design. l-shaped lithium batteries are available in different capacities, sizes and voltages. If there are special requirements, we have the ability to provide you with the right solution for your L-shaped battery application.

Product Details

Model No.	Full-Charged Voltage	C rate	Capacity	Thickness	Width	Length
GRP6884048	4.2V	8C	2125mAh	6.55mm	84.61mm	48.5mm
GRP6828076	4.35V	5C	1400mAh	6.3mm	28.7mm	76.12mm
GRP6125073	4.35V	5C	1000mAh	5.7mm	25.7mm	73.7mm

Pouch L Shaped Lithium-Ion Battery Features

Long cycle life
After 1000 cycles, the capacity retention exceeds 80%
High working voltage
Support high voltage from 4.2V to 4.4V
Ultra thin
Thicknesses up to 0.5mm
Excellent fast charging ability
Support 3C~5C fast charging, shorter charging time
Wide temperature range
Can be used at temperatures from -50 °C to 50 °C or -20 °C to 80 °C
High energy density
The specific energy density is as high as 460Wh/L
Support PCB / PMC design
Design your own PCM to meet your needs
High safety
UL1642, IEC62133, FDA, ISO13485, UN 38.3, REACH SVHC, RoHS, etc.(Varies by model)
