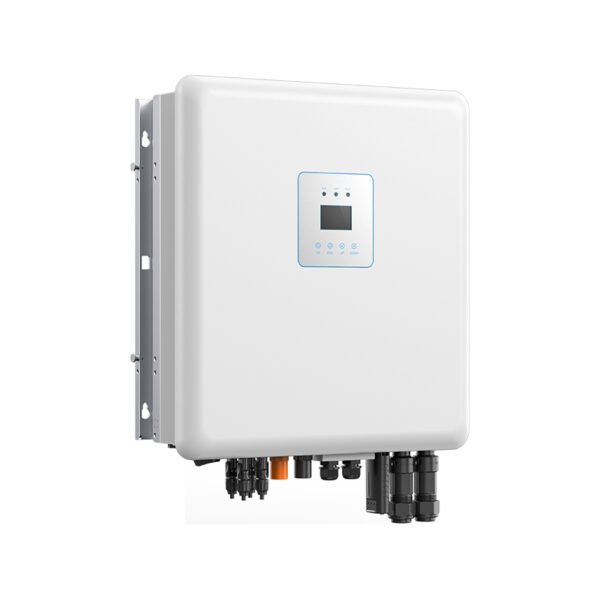

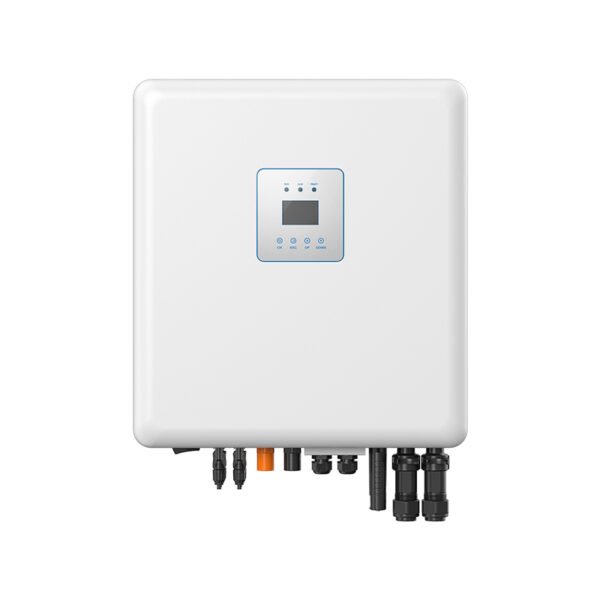

GPEX-3K6L1
Gospower GPEX-3K6L1 hybrid inverter is a high-performance single phase energy controller, including max.6 units paralleling connected. It can keep more home appliances active with higher self-sufficiency in green energy and lower electricity bills.
IP65 Design,Natural Cooling
Support LFP &SLA Battery
Max.6 Units Parallel
Single phase
Easy installation
Lightweight and compact
●PV Inverter Technical Parameters
| Module | Parameter | GPEX-3K6L1 | GPEX-5KL1 | GPEX-6KL1 |
| PV (DC Input) | Recommended Max. PV Input Power | 4800W | 8000W | |
| Max. Input Voltage (Voc) | 600V | |||
| MPPT Operating Voltage Range | 120-550V | |||
| Number of MPPT | 1 | 2 | ||
| Max. Input Strings per MPPT | 1 | |||
| Max. Input Current per MPPT | 13A | 13/13A | ||
| Max. Short-Circuit Current per MPPT | 20A | |||
| Grid-tie (Bidirectional) | Rated Input Power | 3600W | 5000W | 6000W |
| Rated Input Current | 15.7A | 21.7A | 26.1A | |
| Rated Grid Voltage | 230V (L,N,PE) 50/60Hz | |||
| Total Harmonic Distortion | <3% | |||
| Power Factor | -0.8～+0.8 | |||
| Battery (Bidirectional) | Battery Type | SLA & LiFePO₄ | ||
| Battery Voltage Range | 40-60V | |||
| Rated Battery Voltage | 48VDC | |||
| Max. Charge/Discharge Current | 50A | 100A | ||
| BMS Communication Mode | RS485 / CAN | |||
| Backup Output (AC) | Rated Output Power | 3600W | 5000W | 6000W |
| Rated Output Current | 15.7A | 21.7A | 26.1A | |
| Rated Output Voltage | 230V (L,N,PE) 50/60Hz | |||
| Surge Power | 3960VA | 5500VA | 6600VA | |
| THDv (@ Linear Load) | <3% | |||
| Transfer Time | <10ms | |||
| Efficiency | Max. MPPT Efficiency | 99.90% | ||
| Max. Efficiency | 97.20% | 98.00% | ||
| European Efficiency | 96.40% | 97.10% | ||
| Battery Charge/Discharge Efficiency | 94.00% | |||
| Protection | Protection Functions | √DC Switch √PV Reverse Polarity Protection √Battery Reverse Polarity Protection √Output Short Circuit Protection √Output Overvoltage Protection √Insulation Impedance Detection √Residual Current Detection √Anti-Islanding Protection |
||
| Surge Protection | PV: Type III, AC: Type III | |||
| IP Rating | IP65 | |||
| General Parameters | Operating Temperature Range | -25~60℃ | ||
| Relative Humidity Range | 0～95% | |||
| Installation Type | Wall-mounted | |||
| Cooling Method | Natural Cooling | |||
| Communication | Wi-Fi; RS485; GPRS | |||
| Display | LCD Screen; APP | |||
| Mechanical Specifications | Inverter Dimensions (L*W*H) (mm) | 535*485*198.5 | ||
| Net Weight (kg) | 27.5 | 29 | ||
| Carton Dimensions (L*W*H) (mm) | 715*565*331 | |||
| Gross Weight (kg) | 31.5 | 34.5 | ||
