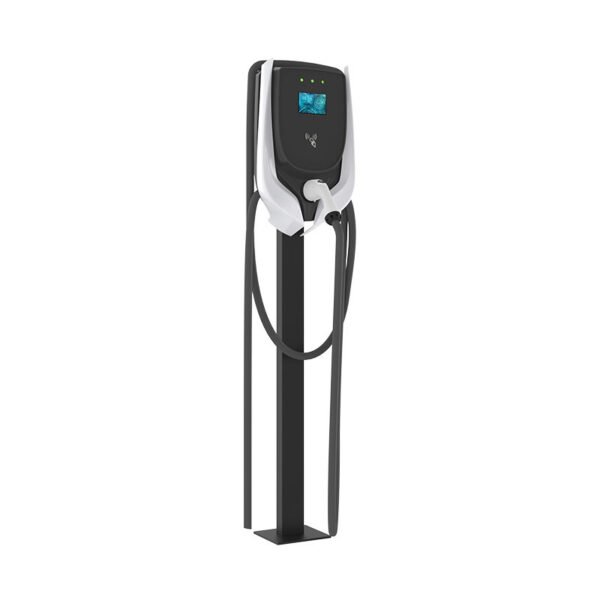

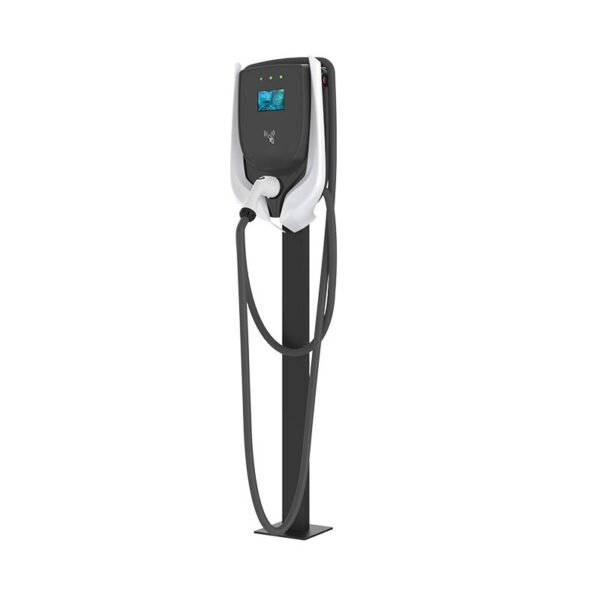

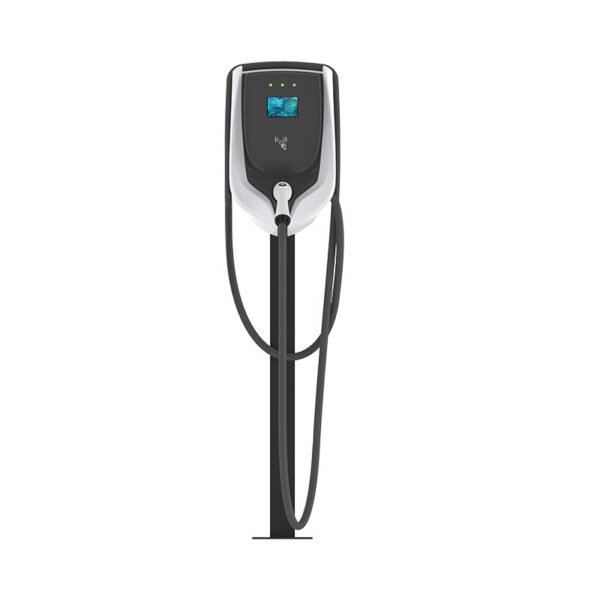

EV Charging Station – Wall-mounted 7KW

AC charging station provides AC 50Hz, rated voltage 220V AC power supply, and issupplied to an electric vehicle with a vehicle charger.Mainly applicable to the followingplaces Large, medium and small electric vehicle charging stations;Various public placeswith electric car parking spaces, such as urban residential quarters, shopping plazas, andelectric power business places;High-speed service area, station terminal and othertransportation hub areas.

EV Charging Station – Wall-mounted 7KW

Multi-protection

Multiple protection functions make charging more stable

Design

Support two charging methods: online operation and offline charging

Standardization

Highly integrated internal design with extremely low failure rate

Protective block

Built-in active protection module, which can monitor the voltage of the vehicle battery, temperature and other data

Portable

Humanized design, more convenient installation

Constant power

Constant power output at full voltage

Product Description

The AC charging station provides AC power with 50Hz and rated voltage 220V, charging electric vehicles equipped with on-board chargers. It is mainly suitable for large, medium and small electric vehicle charging stations; public places with various electric vehicle parking spaces such as urban residential quarters, shopping plazas, power business places, etc.; and transportation hub areas such as high-speed service areas, stations, docks, etc.

Product Parameter

Parameter Specification
Dimensions (mm) 450*305*130
Human-computer Interaction 4.3 inch touch screen
AC Power 220Vac±20%; 50Hz±10%; L+N+PE
Rated Current 32A
Charging Method Swipe card, scan code
Networking Method 2G, 4G, Wifi, applet
Protective Function Overvoltage, undervoltage, overcurrent, short circuit, surge, leakage, etc.
Charging Port GB/T 20234.2-2015
Charging Cable Length Standard 3.5 meters (optional)
Protection Level IP54
