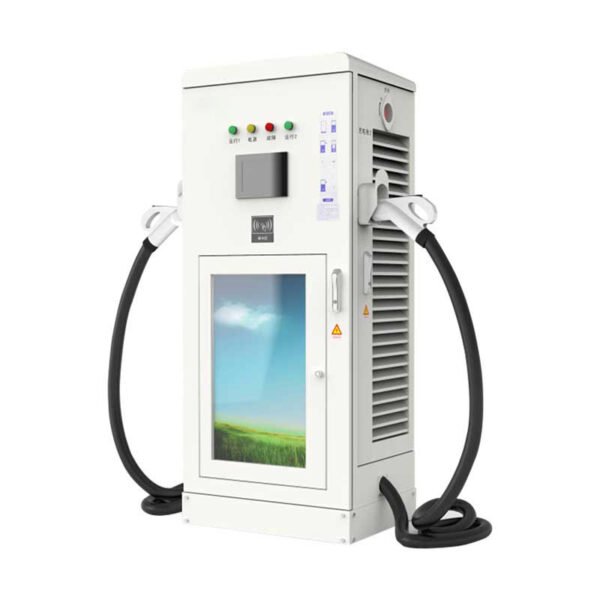

EV Charging Station – DC 120/180KW

DC EV charging station is suitable for special urban charging stations (buses, taxis,official vehicles, sanitation vehicles, logistics vehicles, etc.); urban public charging stations(private cars, commuter cars, buses); urban residential communities, shopping plazas,Electric power business sites and other parking lots; inter-city expressway charging stationsand other occasions that require DC fast charging, which are especially suitable for rapiddeployment under limited site conditions.

EV Charging Station – DC 120/180KW

Multi-protection

Multiple protection functions make charging more stable

Design

Easy to install

Remote control

Program upgrade and fault diagnosis can be performed remotely

Protective block

Built-in active protection module, which can monitor the voltage, temperature and other data of the vehicle battery

Access method

Support multiple port access methods such as APP and applet

Fast charging

High-efficiency fast charging

Product Description

The integrated DC charging station is suitable for urban public charging stations (for buses, taxis, official vehicles, sanitation vehicles, logistics vehicles, etc.), urban public charging stations (for private cars, commuter cars, buses), and various parking lots such as mall plazas and power business places.

Product Parameter

Parameter Specification
Dimensions (mm) 720*557*1700 (mm)
Human-computer Interaction 7 inch touch screen
AC Power 380Vac±15%; 50Hz±10%; L1+L2+L3+N+PE
Rated Current 250A, maximum 280A
Output Power 120KW / 180KW
Working Environment Altitude: ≤2000m; Temperature: -20℃~+50℃
Charging Method Swipe card, scan code
Networking Method 2G, 4G, Wifi, applet
Operating Mode Offline no billing, offline billing, online billing
Protective Function Overvoltage, undervoltage, overcurrent, short circuit, surge, leakage, etc.
Charging Port GB/T 20234.2-2015
Charging Cable Length Standard 5 meters (optional)
Protection Level IP54
