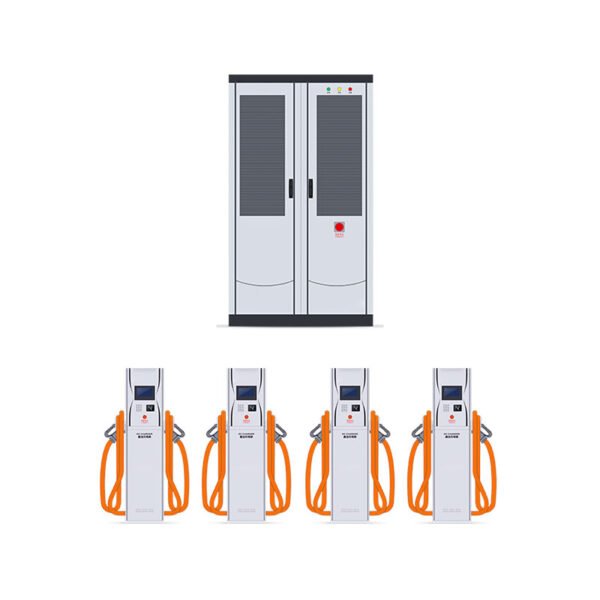

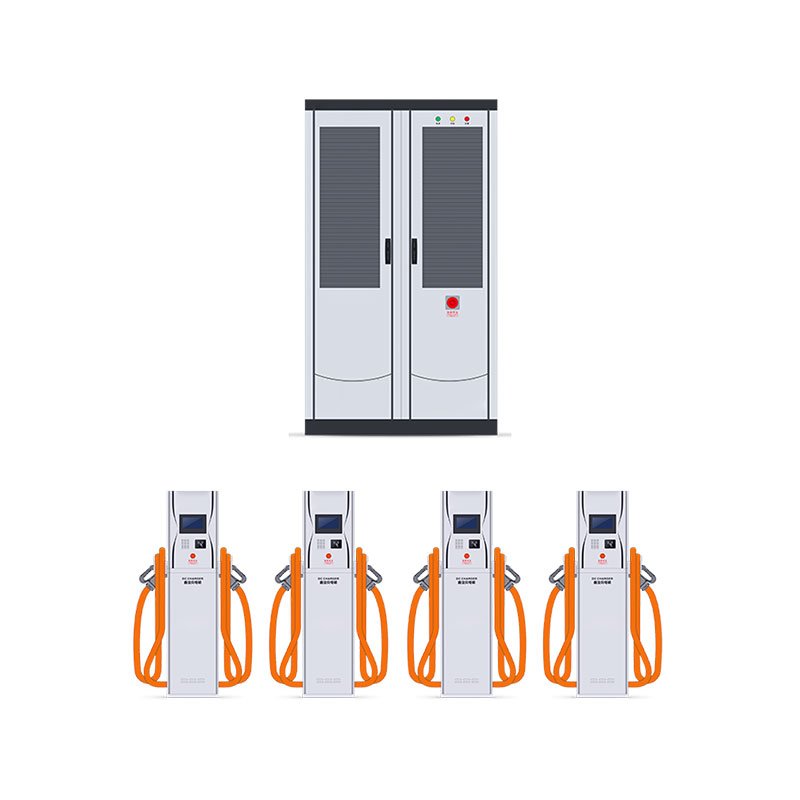

EV charging station – 360KW Flexible

Flexible charging station is suitable for urban special charging stations (buses,taxis, official vehicles, sanitation vehicles, logistics vehicles, etc.); urban public chargingstations (private cars, commuter cars, buses); urban residential communities, shoppingplazas, electric power Various parking lots such as business places; inter-city expresswaycharging stations and other occasions that require DC fast charging, which are especiallysuitable for rapid deployment under limited space.

EV Charging Station – 360KW Flexible

Access Method

Support multiple port access methods such as APP and applet

Display Screen

Smart display, user-friendly design, intuitive interface, easy to operate

Power

Dual gun intelligent flexible power distribution

Protective Block

Built-in active protection module, which can monitor the voltage, temperature and other data of the vehicle battery

Multi-protection

Multiple protection functions make charging more stable

Remote Diagnosis

Program upgrade and fault diagnosis can be performed remotely

Product Description

The DC charging station is suitable for city-specific charging stations (buses, taxis, official vehicles, sanitation vehicles, logistics vehicles, etc.), urban public charging stations (private vehicles, commuter cars, buses), intercity highway charging stations, etc. It is suitable for DC fast charging scenarios, especially for rapid deployment under limited site conditions.

Product Parameter

Parameter Specification
Input Voltage 323-437Vac
Input Frequency 45~65Hz
Maximum Input Current 720A
Input Power Factor ≥0.99
Output Voltage Range 200~750Vdc
Output Current Range 0~1080A (system)
Overall Efficiency ≥95%
Operating Temperature -20~65℃, derating output above 50℃
Working Humidity ≤95%
Altitude ≤2000m
Protective Function Overvoltage, undervoltage, overcurrent, short circuit protection, etc.
