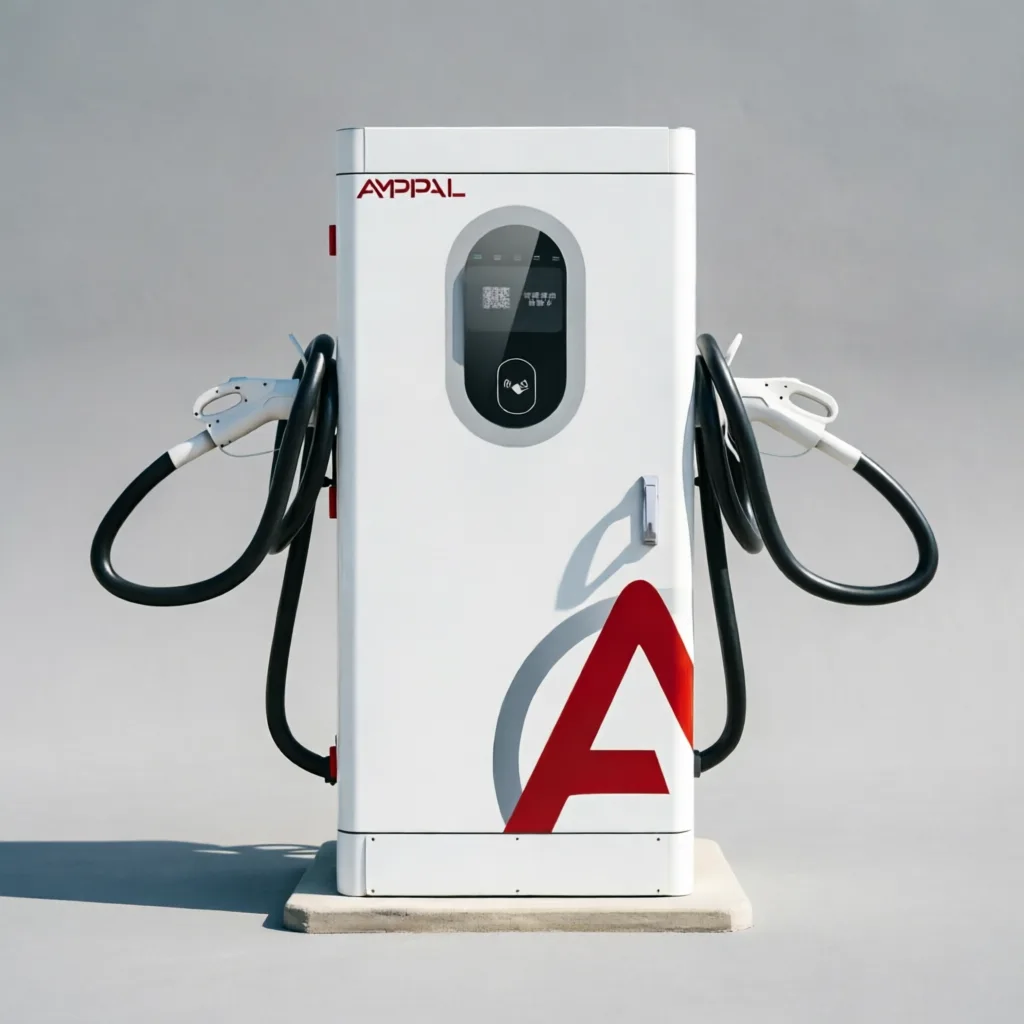

60-160kW Lingzhi Series DC Electric Vehicle Fast Charger

Product Overview

This Anfu DC fast charging station is designed for urban public charging scenarios, including buses, taxis, official vehicles, sanitation trucks and logistics fleets.

It is widely applicable to public charging stations for private cars, commuter vehicles and buses, shopping mall parking lots, power business premises, as well as intercity expressway charging sites requiring high-speed DC charging. Its compact integrated structure is especially suitable for rapid deployment in space-constrained environments.

Key Features

Intelligent Design
Digital current sharing technology improves both current sharing accuracy and anti-interference performance. Module sleep and rotation technology optimizes system efficiency and reduces ineffective power consumption. Multi-mode charging with real-time monitoring enables smart interaction, adapting to both commercial operation and individual user demands.
Energy Saving & Low Noise
Three-phase PFC topology achieves PF > 0.99 and THDi ≤ 5% for excellent grid compatibility. Full-bridge phase-shifted soft-switching technology breaks through high-frequency module efficiency limits and minimizes overall standby power consumption. Dual electromagnetic and structural damping noise reduction technology ensures quiet daily operation.
Comprehensive Safety Protection
Air-isolation plus reverse-charging prevention design blocks grid surges and provides bidirectional protection for both charger and vehicle battery. Full-process monitoring system responds instantly to any charging abnormality. Hot-swappable module structure guarantees operator safety during on-site maintenance.
High Efficiency & Flexible Deployment
Silicon Carbide (SiC) MOS modules feature high power density and redundancy design for outstanding reliability. Ultra-wide output voltage range covers 99% of EV models on the market, adapting to diverse application scenarios. The all-in-one structure enables fast installation even in space-limited locations, minimizing total operation cost.

Technical Specifications

Parameter	60kW Model	80kW Model	120kW Model	160kW Model
Model Number	AF-DC-60-Y-B-Z-4-H	AF-DC-80-Y-B-Z-4-H	AF-DC-120-Y-B-Z-4-H	AF-DC-160-Y-B-Z-4-H
Rated Power	60kW	80kW	120kW	160kW
Input Voltage	AC 380V ± 18%
Product Dimensions	1620 × 750 × 560 mm
Efficiency	≥ 95%
Charging Modes	Auto full charge / Preset energy amount / Preset charging cost / Scheduled charging time
Activation Methods	RFID card charging / QR code scanning charging / Password charging
Network Connectivity	Ethernet / 4G
Noise Level	≤ 65dB
Ingress Protection Rating	IP55
Protection Functions	Charging gun temperature detection, over-voltage protection, under-voltage protection, overload protection, short-circuit protection, grounding protection, over-temperature protection, low-temperature protection, insulation monitoring, reverse polarity protection, lightning protection, emergency stop protection, leakage protection
