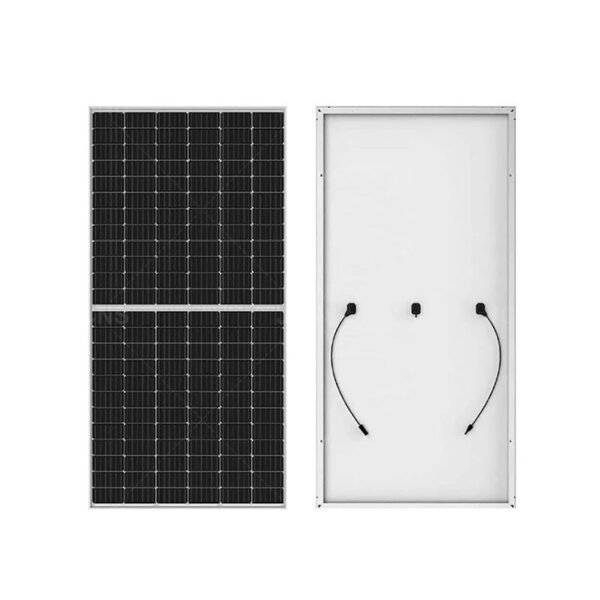

550W solar panel, photovoltaic module
● Solar panels: Standard components, monocrystalline single glass, 550Wp
● Dimensions: 2279*1134*30mm
● Weight: 25kg per piece
● Packaging: 36 pieces per tray, tray size 2310*1125*1250mm, 720 pieces per 40HQ
● The components have passed the wind load of 2400pa and snow load of 5400pa, as well as other tests
● 12-year product warranty, 25-year power warranty
| Product Parameter | 550W |
|---|---|
| Maximum Power(W) | 550W |
| Size(MM) | 2279*1134*30mm |
| Weight(KG) | 25kg/pcs |
| Packing | 36pcs/pallet |
| Pallet size | 2310*1125*1250mm |
| Container | 720pcs/40HQ |
| Tolerance(%) | ±3% |
| Open Circuit Voltage(V) | 50.93 |
| Maximum Power Voltage(V) | 42.44 |
| Maximum Power Current(A) | 12.96 |
| Short Circuit Current(A) | 14 |
| Module Efficiency(%) | 21.3 |
| Solar Cell Efficiency(%) | 23.2 |
| Series Fuse Rating(A) | 25 |
| Terminal Box | IP67 |
| Maximum system voltage(V) | DC1500 |
| OperatingTemperature(℃) | -40℃—85℃ |
| Product Feature |
|---|
| Bypass diode minimizes the power drop by shade. |
| The conversion efficiency of solar cell is above 23%. |
| White tempered glass, EVA resin, weather proof film and anodized aluminum frame to provide efficient protection from the severe environmental conditions. |
| Waterproof. Perfect for grid applications. |
| Product guarantee 10 years. |
| Quality Assurance | |
|---|---|
| Electrical Insulation test | Damp heat Test |
| Outdoor exposure test | Robustness of terminations test |
| Hot-spot endurance test | Wet leakage current test |
| UV-exposure | Mechanical load test |
| Thermal cycling test | Hail impact test |
| Humidity freeze test | Bypass diode thermal test |
