Product Appearance and Function Description & Specifications

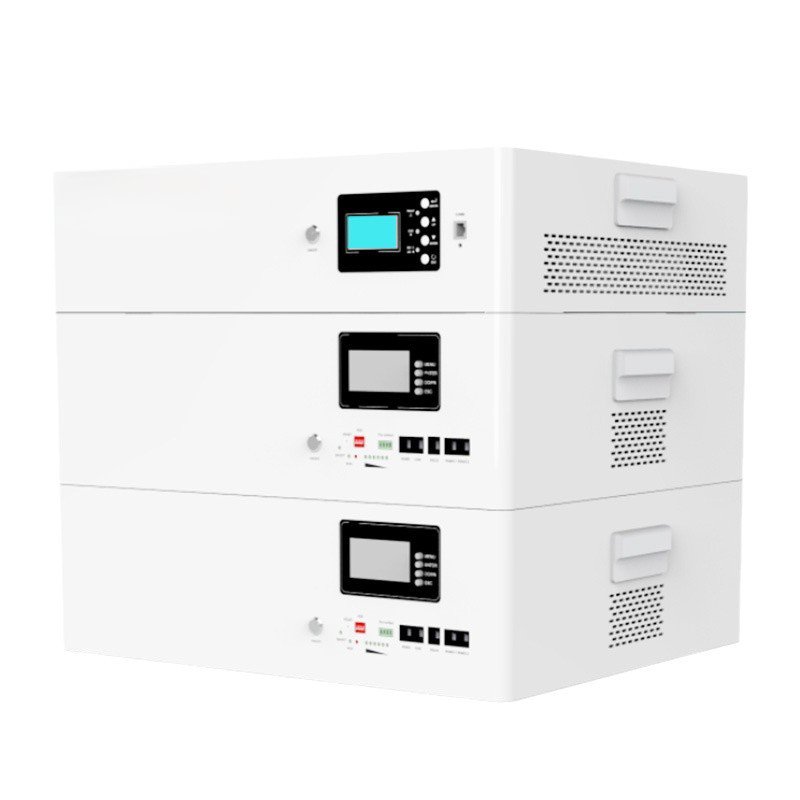

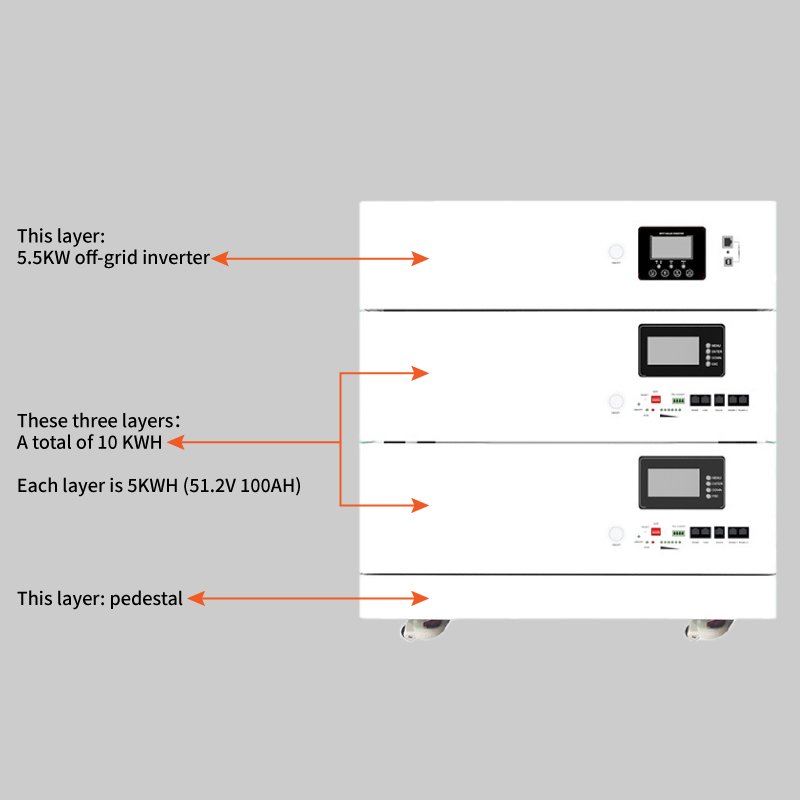

1. Appearance and Function Description

1	Electricity switch / Power switch	13	Solar energy input
2	Liquid crystal display screen	14	Negative terminal of power supply
3	LED indicator light	15	Liquid crystal display screen
4	Function key control	16	Function key control
5	RS232 communication port	17	ADD Address setting
6	BMS / RS485 communication port	18	Dry contact point
7	NO / N / NC	19	Power switch / Power supply switch
8	Solar energy input	20	Switch and operation indicator light
9	Solar energy input	21	RS485 / CAN communication port
10	Positive terminal of power connector	22	RS232 communication port
11	AC input	23	RS485-1 / RS485-2 communication port
12	AC output	24	Battery circuit breaker switch

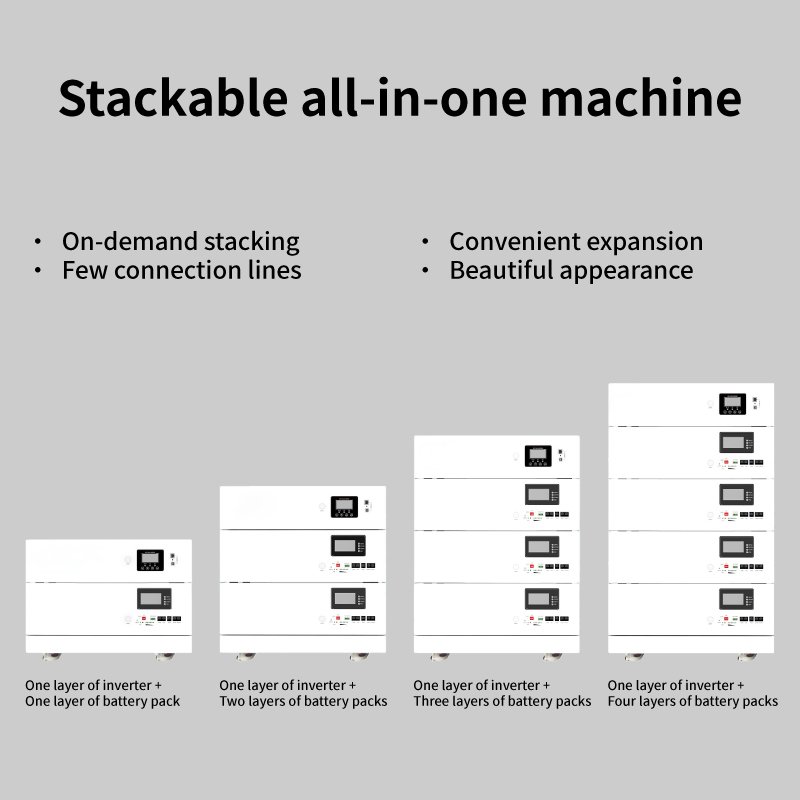

2. Product Features

● Pure sine wave inverter

● Configurable input voltage range for household appliances and personal computers, set via LCD.

● Configurable battery charging current, set via LCD

● Configurable AC/solar charger priority, set via LCD

● Compatible with mains or generator power, auto-restart after AC power recovery

● Intelligent battery charger with overload/overheat/short circuit protection, optimizes battery performance

● Cold start function

3. Announcements

●	1. Before use, please read the instruction manual carefully and use the equipment correctly. Do not use it in damp, high-temperature, low-temperature or flammable gas environments, otherwise it may cause equipment failure and even damage other electrical appliances.
●	2. The system’s operating temperature range is -10°C to 40°C. If the battery is used below -10°C, the capacity of the lithium iron phosphate battery will decrease, shortening the charging and discharging time. If the ambient temperature is too low, the protection function will be activated and the system will not work properly. If the ambient temperature is too high, ensure the product’s ventilation and heat dissipation are adequate.
●	3. The built-in inverter is an off-grid inverter.
—	3.1. It is strictly prohibited to connect any other AC power source to the inverter. The AC output interface must not be connected to mains power, which may cause the inverter to catch fire.
—	3.2. When the inverter outputs 230V with high load power or inductive loads, the screen may be disturbed, blurry or incomplete. Therefore, the LCD display will automatically update every 2 minutes. If you want to solve this problem quickly, when the screen shows: “Please note that the battery is protected”, there are two situations:
—	3.2.1. Overcharging causes battery protection. Disconnect the solar panel to consume part of the battery power.
—	3.2.2. The air switch is not turned on.
●	4. Ensure the load matches the inverter’s capacity when driving inductive loads (e.g., motor, electric fan, air conditioner, etc.).
●	5. When the connected load is within the generator’s power range, this system only supports inductive loads with an output power of 1/4 or 1/3 of the rated power.
●	6. The system’s output and input voltages are both higher than the safety voltage of the human body.
