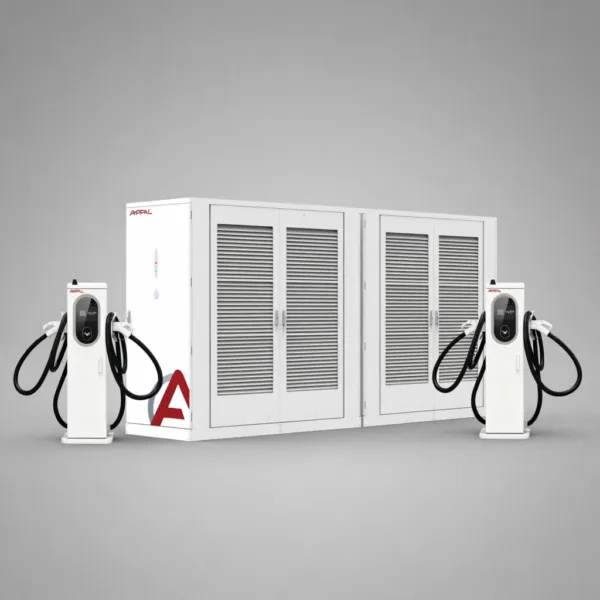

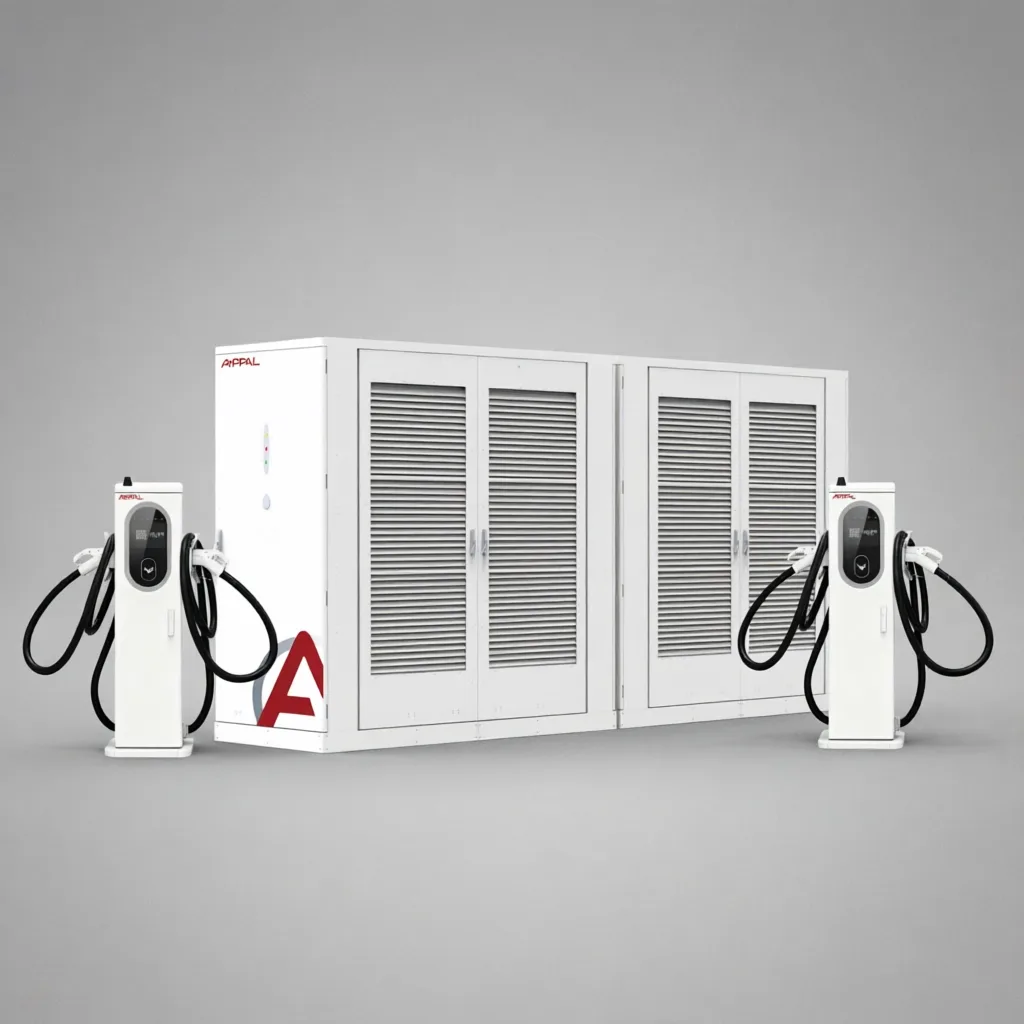

4800-6400kW Megawatt-Class Flexible DC Charging Stack
As the electrification wave expands from individual mobility to full-scale transformation of the entire transportation system, urban expectations for energy supply infrastructure have gone far beyond the scope of traditional charging stations.
This 4800-6400kW megawatt-class DC charging stack is a city-level mobile energy infrastructure built for this historic turning point. It is no longer just equipment serving vehicles, but a key node of the new power system integrating ultra-large-scale power dispatch, multi-energy collaborative interaction and active regional grid support.
It provides a future-proof ultimate energy solution for super charging hubs, electric heavy-duty truck trunk corridors, zero-carbon logistics parks and urban green transportation core zones.
4800-6400kW Megawatt-Class Flexible DC Charging Stack
Product Overview
As the electrification wave expands from individual mobility to full-scale transformation of the entire transportation system, urban expectations for energy supply infrastructure have gone far beyond the scope of traditional charging stations.
This 4800-6400kW megawatt-class DC charging stack is a city-level mobile energy infrastructure built for this historic turning point. It is no longer just equipment serving vehicles, but a key node of the new power system integrating ultra-large-scale power dispatch, multi-energy collaborative interaction and active regional grid support.
It provides a future-proof ultimate energy solution for super charging hubs, electric heavy-duty truck trunk corridors, zero-carbon logistics parks and urban green transportation core zones.
Key Features
- Modular Power Cabin Design
Built on standardized, prefabricated 320kW power modules as basic units, supporting flexible configuration from 4800kW to 6400kW and smooth later-stage capacity expansion, cutting construction cycle by 50%. - Intelligent Power Scheduling
The central control system distributes power at millisecond level according to real-time vehicle demand, battery status and grid dispatch instructions, maximizing overall energy utilization efficiency. - Ultra-Real-Time Dispatch System
Powered by AI algorithms, it coordinates four dimensions at millisecond level: grid input power, local energy storage charge/discharge, solar & wind power output, and vehicle charging demand, achieving optimal allocation of global energy flow. - Active Grid Support Capability
Equipped with grid ancillary services including primary frequency regulation, reactive power compensation and harmonic management. It can directly accept grid dispatch commands, serving as a reliable “sponge load” for building the new power system.
Technical Specifications
| Parameter | 4800kW Main Cabinet | 6400kW Main Cabinet | 250A Air-cooled | 300A Air-cooled | 400A Air-cooled | 600A Liquid-cooled | 800A Liquid-cooled |
|---|---|---|---|---|---|---|---|
| Model Number | AF-DC-4800 | AF-DC-6400 | AF-DC-250 | AF-DC-300 | AF-DC-400 | AF-DC-600 | AF-DC-800 |
| Rated Power | 4800kW | 6400kW | Air-cooled terminal | Liquid-cooled terminal | |||
| Supported Guns | Up to 24 guns | Single gun / Dual gun | Single gun / Dual gun | Single gun | |||
| Product Dimensions | 1460 × 5400 × 1200 mm | 1480 × 400 × 240 mm | 1630 × 500 × 370 mm | ||||
| Output Current | 600A | 384A | 250A | 300A | 400A | 600A | 800A |
| Charging Modes | Auto full charge / Preset energy amount / Preset charging cost / Scheduled charging time | ||||||
| Activation Methods | RFID card charging / QR code scanning charging / Password charging | ||||||
| Network Connectivity | Ethernet / 4G | ||||||
| Noise Level | ≤ 65dB | ≤ 40dB | ≤ 50dB | ||||
| Ingress Protection Rating | IP54 | ||||||
| Protection Functions | Charging gun temperature detection, over-voltage protection, under-voltage protection, overload protection, short-circuit protection, grounding protection, over-temperature protection, low-temperature protection, insulation monitoring, reverse polarity protection, lightning protection, emergency stop protection, leakage protection | ||||||
Certifications & Connector Options
- China Compulsory Certification (3C Certified)
- Available connector standards: US Standard, European Standard, Chinese GB Standard, Japanese Standard
