Gecko 1200 Inverter Energy Storage Product Parameters

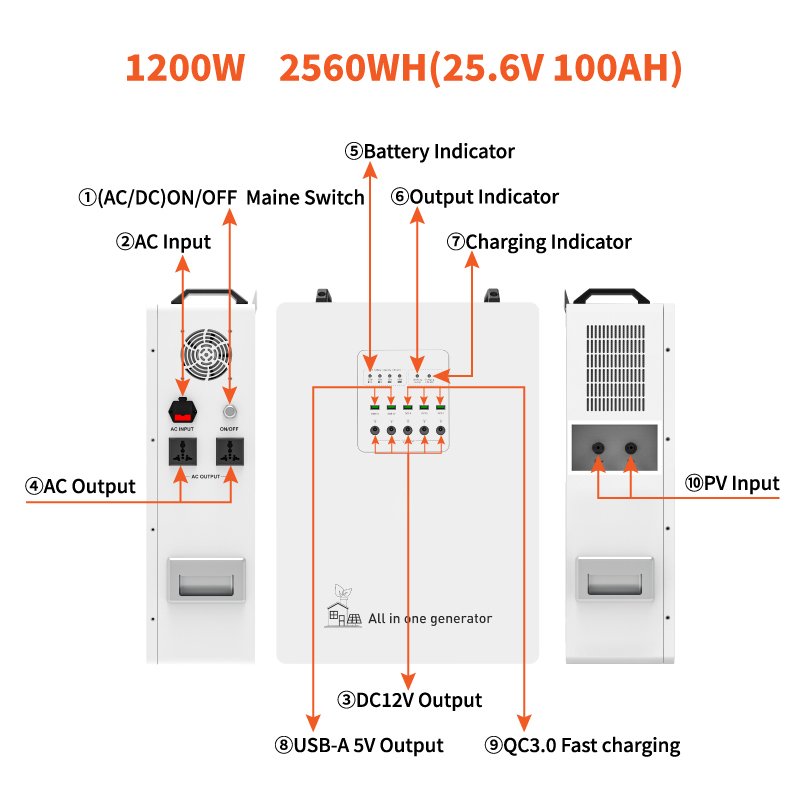

1. Function Introduction （Part）

③	DC12V Output：	It can be used to connect light bulbs for daily use， and can also be used with DC12V interfaces in some home audio systems， amplifiers， speakers， displays， and monitors. Some external hard drives and storage devices can also use DC12V power supply.
④	AC Output：	which can be connected to low-power devices such as lamps， fans， TV game consoles， small office equipment， laptops， speakers， and projectors for daily use.
⑧	USB-A 5V Output，2*USB-A (White core)：	Supports 5V/2.4A and DCP (BC1.2， Apple， and Samsung protocols)
⑨	PD3.0 Fast Charging，1*Type-C：	Supports 5V, 9V, 12V voltage output and PD2.0/PD3.0 (PPS) output protocol
⑩	QC3.0 Fast Charging，1*USB-A (Blue core)：	Supports 5V/3A， 9V/2A， 12V/1.5A voltage output (supports BC1.2， Apple protocol， Qualcomm QC2.0 and QC3.0， Huawei fast charging protocol FCP， Samsung fast charging protocol AFC)
⑪	PV Input：	Support solar charging， AC adapter charging， etc.

2. Bidirectional Inverter

Energy bidirectional flow (charging mode)：	It can convert mains electricity into battery energy storage through an inverter
Energy bidirectional flow (inverter mode)：	or convert battery energy storage into mains electricity for load use through an inverter
Complex control：	requires an intelligent control system to manage energy flow and support multiple working modes.
Multi functional integration：	usually combined with energy storage systems (such as batteries) to achieve charge and discharge management.
Uninterruptible Power Supply (UPS) Normally：	the mains or photovoltaic power is directly supplied to the load through an inverter， while the rectifier charges the battery
Uninterruptible Power Supply (UPS) When power is cut off：	switch to battery power supply， and the inverter starts (switching time is <20ms)

3. Parameter Specifications

Basic Information
Product Model	Gecko 1200
Size	400×164×550 (mm)
Inverter version	230V mains power / 120V mains power
Output Port
Output	2USB-A (white core)，3USB-A (blue core)
Output	5*DC:12V/5A
Input Port
AC Input Voltage	220V-240V，50Hz / 100V-120V，45-65Hz
Photovoltaic Charging Power	Max 500W
AC Charging Power	Max 800W
AC+DC Charging Total Power	Max 1300W
Photovoltaic Charging Voltage	30-60V
Battery Specifications
Capacity	25.6V 50Ah (Optional) / 25.6V 100Ah (Optional)
Operation Temperature
Optimal Operating Environment Temperature	20°C ~ 30°C
Discharge Environment Temperature	-10°C ~ 45°C
Charging Environment Temperature	0°C ~ 45°C
Storage Environment Temperature	-10°C ~ 45°C (optimum temperature：20°C ~ 30°C)
Others
Control Mode	MPPT
Protection Circuit	DC output， USB output， and AC output have short-circuit protection and overload protection
Altitude Restrictions	For safe use only in areas below an altitude of 4000 meters

4. Inverter Specifications
