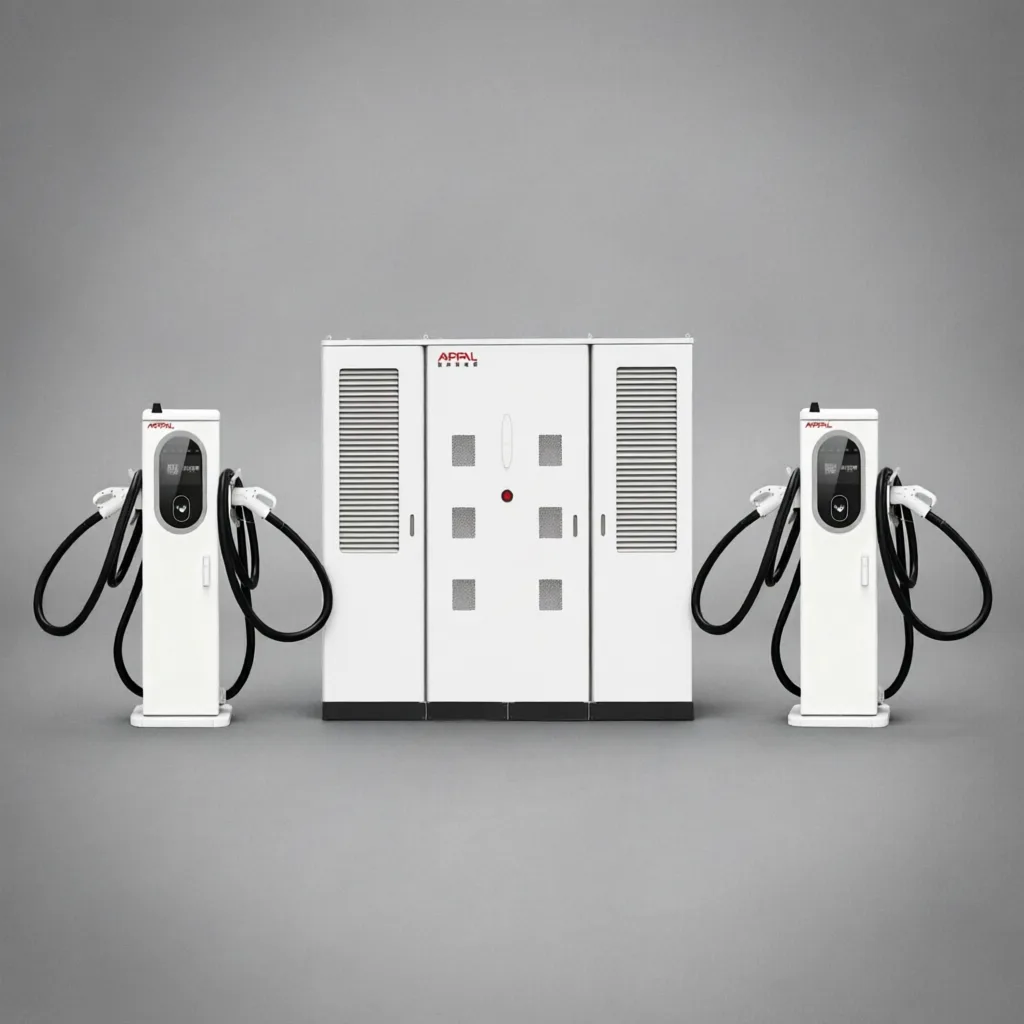

1200kW-1440kW Megawatt-Class Flexible DC Charging Stack
This megawatt-class charging stack is engineered for urban public charging scenarios, including buses, taxis, official vehicles, sanitation trucks and logistics fleets.
It is widely deployed in public charging stations for private cars, commuter vehicles and buses, shopping mall parking lots and power business premises, as well as intercity expressway charging hubs requiring ultra-high-power DC fast charging. Its high-integration design is especially suitable for rapid deployment in space-constrained locations.
1200kW-1440kW Megawatt-Class Flexible DC Charging Stack
Product Overview
This megawatt-class charging stack is engineered for urban public charging scenarios, including buses, taxis, official vehicles, sanitation trucks and logistics fleets.
It is widely deployed in public charging stations for private cars, commuter vehicles and buses, shopping mall parking lots and power business premises, as well as intercity expressway charging hubs requiring ultra-high-power DC fast charging. Its high-integration design is especially suitable for rapid deployment in space-constrained locations.
Key Features
- Dynamic Power Distribution
Realizes “power sharing” and “demand-based charging”. The system dynamically concentrates all power from idle modules to a single vehicle, enabling a single charging gun to deliver up to 480kW or even over 600kW ultra-fast charging experience. - Intelligent Power Scheduling
The central control unit distributes power at millisecond level according to real-time vehicle demand, battery status and grid instructions, maximizing charging efficiency and energy utilization. - Ultra-Real-Time Dispatch System
Based on AI algorithms, it coordinates four dimensions in real time: grid input power, local energy storage charge/discharge, solar & wind power output, and vehicle charging demand, achieving optimal allocation of global energy flow. - Active Grid Support Capability
Equipped with grid service capabilities including primary frequency regulation, reactive power compensation and harmonic management. It can directly accept grid dispatch instructions, serving as a reliable “sponge load” for building the new power system.
Technical Specifications
| Parameter | 1200kW Main Cabinet | 1440kW Main Cabinet | 250A Air-cooled | 300A Air-cooled | 400A Air-cooled | 600A Liquid-cooled | 800A Liquid-cooled |
|---|---|---|---|---|---|---|---|
| Model Number | AF-DC-1200-F12-B-Z-4-H | AF-DC-1440-F12-B-Z-4-H | AF-DC-250 | AF-DC-300 | AF-DC-400 | AF-DC-600 | AF-DC-800 |
| Rated Power | 1200kW | 1440kW | Air-cooled terminal | Liquid-cooled terminal | |||
| Supported Guns | 2 – 24 guns | Single gun / Dual gun | Single gun / Dual gun | Single gun | |||
| Input Voltage | AC 380V ± 15% | 200V – 1000V | |||||
| Product Dimensions | 2400 × 2100 × 900 mm | 1480 × 400 × 240 mm | 1630 × 500 × 500 mm | ||||
| Output Current | 0 – 4020A | 0 – 4824A | 0 – 250A | 0 – 300A | 0 – 400A | 0 – 600A | 0 – 800A |
| Charging Modes | Auto full charge / Preset energy amount / Preset charging cost / Scheduled charging time | ||||||
| Activation Methods | VIN plug-and-charge / RFID card charging / QR code scanning charging / Password charging | ||||||
| Network Connectivity | Ethernet / 4G | ||||||
| Noise Level | ≤ 65dB | ||||||
| Ingress Protection Rating | IP54 | ||||||
| Protection Functions | Charging gun temperature detection, over-voltage protection, under-voltage protection, overload protection, short-circuit protection, grounding protection, over-temperature protection, low-temperature protection, insulation monitoring, reverse polarity protection, lightning protection, emergency stop protection, leakage protection | ||||||
Certifications & Connector Options
- China Compulsory Certification (3C Certified)
- Available connector standards: US Standard, European Standard, Chinese GB Standard, Japanese Standard
