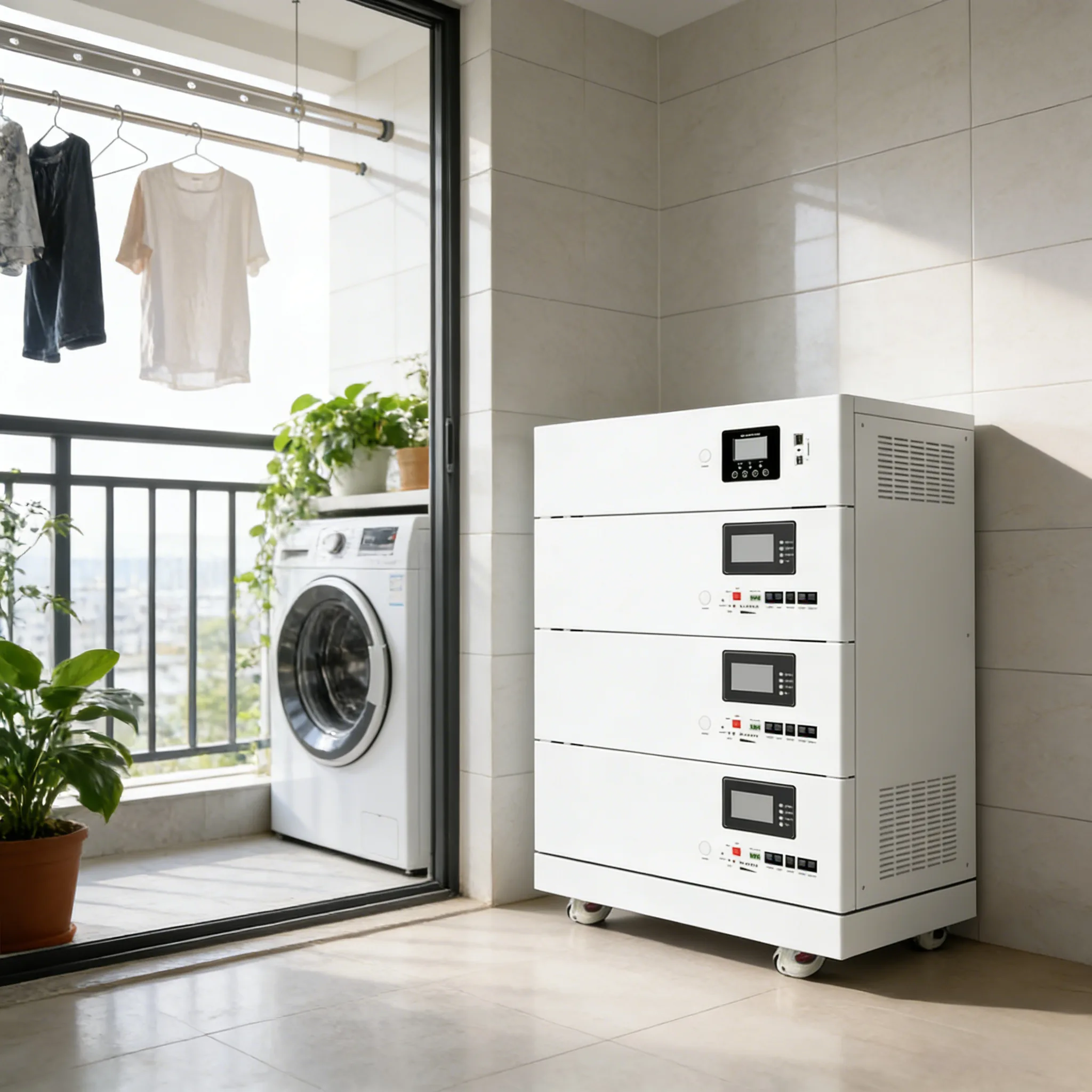

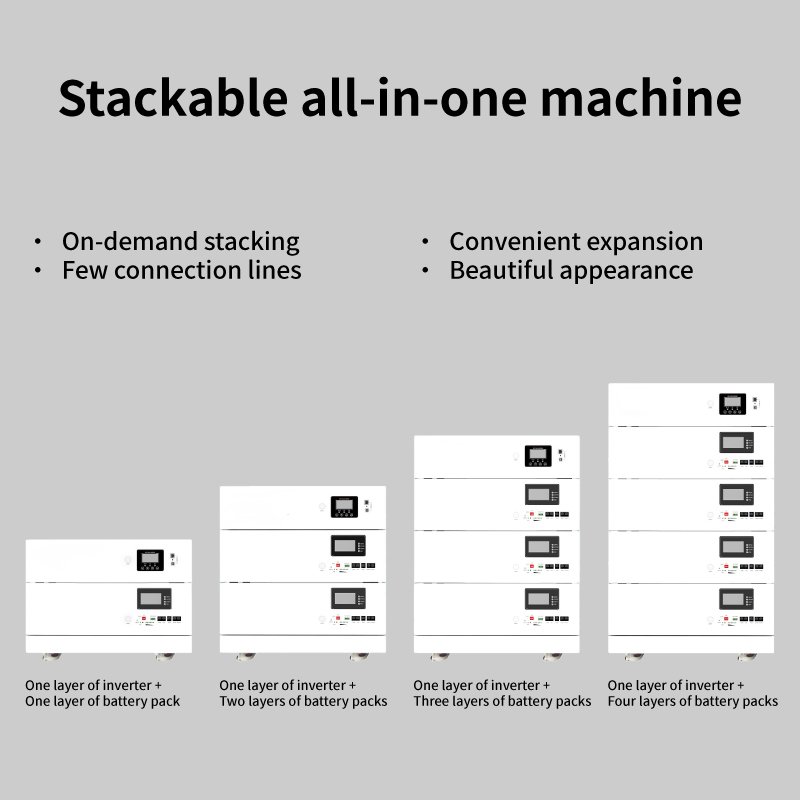

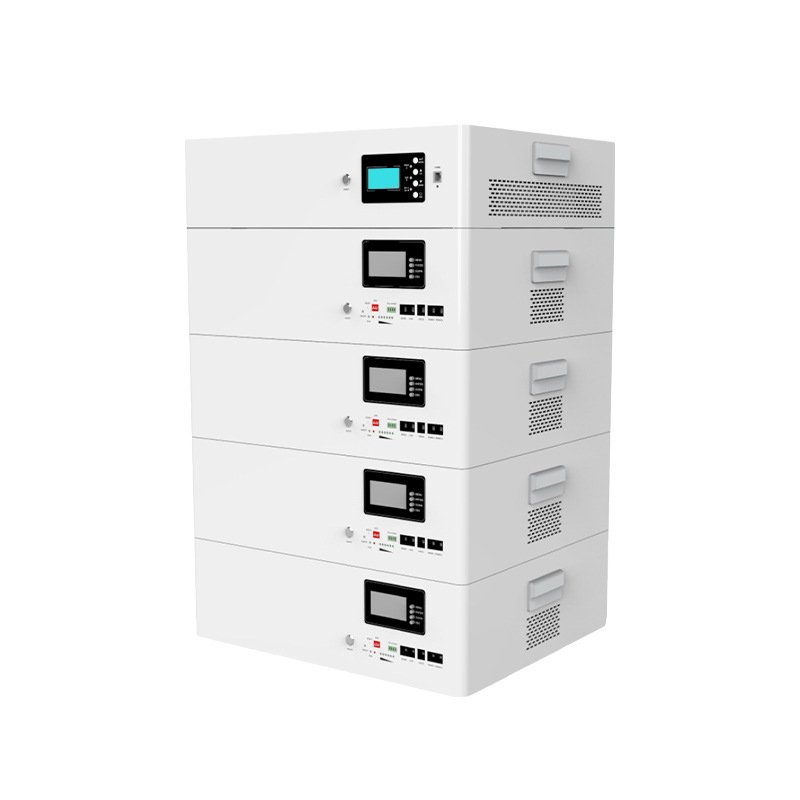

11kw 15kwh，Stackable all-in-one machine，Solar power system

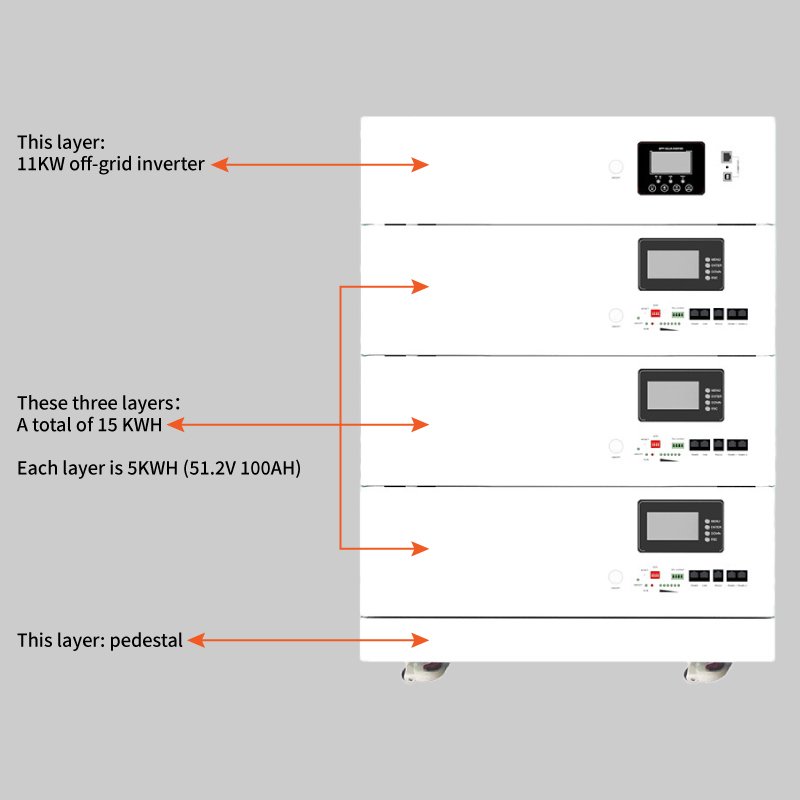

11kw 15kWh is a stacked photovoltaic-storage integrated machine, which integrates the functions of an inverter, a solar controller, and an energy storage battery. The product also has an UPS function. Its LCD display and buttons can be used to change configurations, such as the battery charging current, the priority of AC/solar charger, and the input voltage.
1. Appearance and Function Description
| 1 | Electricity switch / Power switch | 13 | Solar energy input |
| 2 | Liquid crystal display screen | 14 | Negative terminal of power supply |
| 3 | LED indicator light | 15 | Liquid crystal display screen |
| 4 | Function key control | 16 | Function key control |
| 5 | RS232 communication port | 17 | ADD Address setting |
| 6 | BMS / RS485 communication port | 18 | Dry contact point |
| 7 | NO / N / NC | 19 | Power switch / Power supply switch |
| 8 | Solar energy input | 20 | Switch and operation indicator light |
| 9 | Solar energy input | 21 | RS485 / CAN communication port |
| 10 | Positive terminal of power connector | 22 | RS232 communication port |
| 11 | AC input | 23 | RS485-1 / RS485-2 communication port |
| 12 | AC output | 24 | Battery circuit breaker switch |
2. Product Features
| ● Pure sine wave inverter |
| ● Configurable input voltage range for household appliances and personal computers, set via LCD. |
| ● Configurable battery charging current, set via LCD |
| ● Configurable AC/solar charger priority, set via LCD |
| ● Compatible with mains or generator power, auto-restart after AC power recovery |
| ● Intelligent battery charger with overload/overheat/short circuit protection, optimizes battery performance |
| ● Cold start function |
3. Announcements
| ● | 1. Before use, please read the instruction manual carefully and use the equipment correctly. Do not use it in damp, high-temperature, low-temperature or flammable gas environments, otherwise it may cause equipment failure and even damage other electrical appliances. |
| ● | 2. The system’s operating temperature range is -10°C to 40°C. If the battery is used below -10°C, the capacity of the lithium iron phosphate battery will decrease, shortening the charging and discharging time. If the ambient temperature is too low, the protection function will be activated and the system will not work properly. If the ambient temperature is too high, ensure the product’s ventilation and heat dissipation are adequate. |
| ● | 3. The built-in inverter is an off-grid inverter. |
| — | 3.1. It is strictly prohibited to connect any other AC power source to the inverter. The AC output interface must not be connected to mains power, which may cause the inverter to catch fire. |
| — | 3.2. When the inverter outputs 230V with high load power or inductive loads, the screen may be disturbed, blurry or incomplete. Therefore, the LCD display will automatically update every 2 minutes. If you want to solve this problem quickly, when the screen shows: “Please note that the battery is protected”, there are two situations: |
| — | 3.2.1. Overcharging causes battery protection. Disconnect the solar panel to consume part of the battery power. |
| — | 3.2.2. The air switch is not turned on. |
| ● | 4. Ensure the load matches the inverter’s capacity when driving inductive loads (e.g., motor, electric fan, air conditioner, etc.). |
| ● | 5. When the connected load is within the generator’s power range, this system only supports inductive loads with an output power of 1/4 or 1/3 of the rated power. |
| ● | 6. The system’s output and input voltages are both higher than the safety voltage of the human body. |
4. Inverter Parameter Table
| Rated power | 11KW |
|---|---|
| Input | |
| Nominal input voltage | 230Vac |
| Selectable voltage range | 154-264Vac (Personal Computers) |
| 185-264Vac (Household Appliances) | |
| Frequency range | 50Hz/60Hz (Automatic Induction) |
| Output | |
| AC voltage regulation (battery mode) | 220~240Vac±5% |
| Surge power | 20000VA |
| Efficiency (peak) PV to INV. | 97% |
| Efficiency (peak) battery to INV. | 94% |
| Transfer Time | 10ms (UPS mode for Computers); 20ms (APL mode for Household Appliances) |
| Waveform | Pure sine wave |
| Battery and AC Charger | |
| Battery voltage | 48Vdc |
| Float voltage | 54Vdc |
| Overcharge Protection Voltage | 60Vdc |
| Maximum AC charging current | 160A |
| Solar Charger | |
| Maximum PV array power | 11KW |
| Nominal PV voltage | 350Vdc |
| MPPT range @ operating voltage | 120~500Vdc |
| Maximum PV array open circuit voltage | 500Vdc |
| Maximum charging current (AC charger and solar charger) | 160A |
| Highest efficiency (linear mode) | 98% |
| PHYSICAL | |
| Communication interface | RS232 (supports WIFI and mobile APP connection) |
| Operating Environment | |
| Humidity | 5% to 95% relative humidity (non-condensing) |
| Working temperature | 0°C-55°C |
